FTSH-113-01-L-D-K

Headers, Male Pins Overview

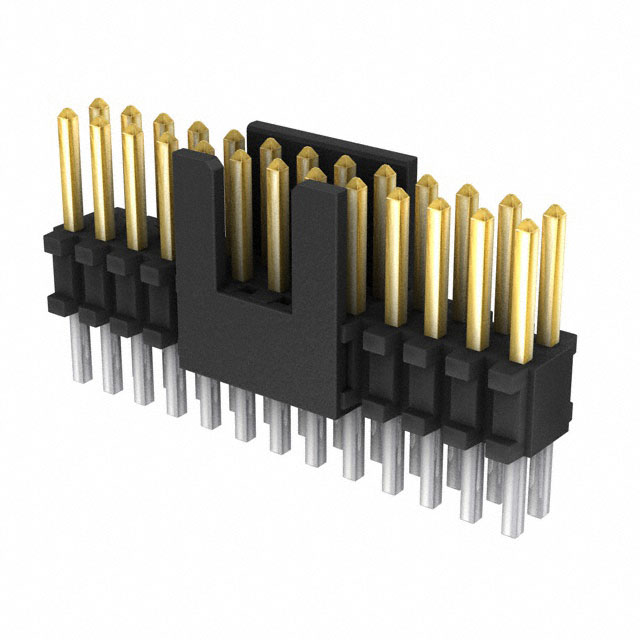

The FTSH-113-01-L-D-K is a high-reliability header strip manufactured by Samtec Inc. It features a 26-position, dual-row configuration with a 1.27mm (0.050 inch) pitch. Designed for through-hole mounting, this connector utilizes phosphor bronze contacts with gold plating on the mating interface and tin plating on the tail. The housing is constructed from black liquid crystal polymer (LCP), rated UL94 V-0 for flammability. It supports a continuous current of 3.4A per contact and operates within a temperature range of -55°C to 125°C.

Headers, Male Pins Feature Summary

• High-reliability design suitable for demanding board-to-board or cable applications
• Flexible stacking solution capability allowing for variable height configurations
• Compatible with keying shrouds for precise alignment and polarity control

Headers, Male Pins Applications

• Board-to-board interconnections in compact electronic assemblies
• Cable-to-board connections requiring robust mechanical retention
• Flexible stacking solutions in multi-layer PCB architectures

Headers, Male Pins Procurement Notes

Verify the specific suffix against official Samtec documentation to ensure correct termination style and packaging. Confirm that the through-hole variant matches the target PCB footprint requirements. Cross-reference the material specifications to validate compliance with project standards for temperature resistance and flammability ratings prior to final procurement decisions.

Headers, Male Pins Selection Notes

Select this component when a low-profile, high-density header is required for through-hole assembly. The 1.27mm pitch offers a balance between signal density and spacing reliability. Ensure the application environment falls within the specified -55°C to 125°C operational range and consider the need for optional keying shrouds if alignment precision is critical for the mating interface.

Headers, Male Pins Part Context

This part belongs to the FTSH series of high-reliability header strips from Samtec. The series is engineered for flexible stacking applications, providing versatile interconnect options for complex electronic systems. The FTSH-113 designation indicates a 26-position count within this standardized lineup of male pin headers designed for rigorous industrial and commercial environments.

Headers, Male Pins Replacement Considerations

• FTSH-113-01-L-D-V-A-P-TR
