FTSH-132-02-F-D

Headers, Male Pins Overview

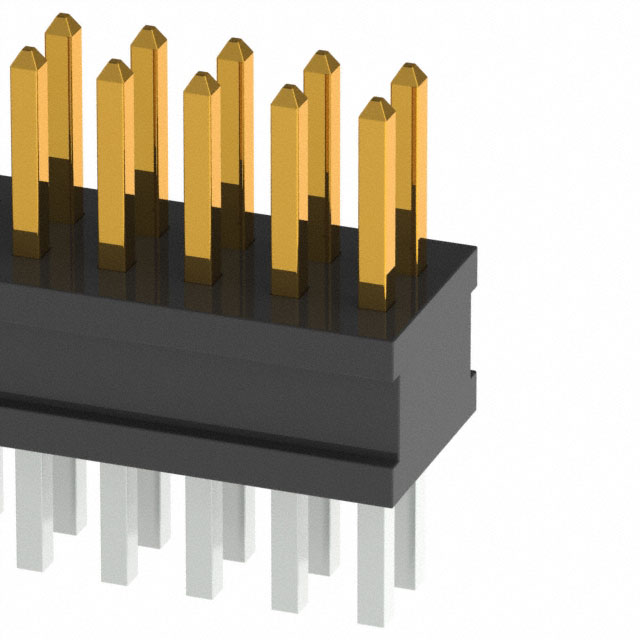

The FTSH-132-02-F-D is a high-reliability board connector manufactured by Samtec Inc. It features a 64-contact configuration arranged in two rows with a male contact gender. The component utilizes a 0.05-inch (1.27 mm) pitch for both mating contacts and row spacing. Designed for surface mount termination, it incorporates a locking mechanism and a black insulator constructed from liquid crystal polymer. The contacts are made of phosphor bronze with gold flash over nickel plating on the mating interface.

Headers, Male Pins Feature Summary

• High-reliability header strip design optimized for robust signal integrity
• Integrated locking feature ensures secure connection stability
• Liquid crystal polymer insulator provides thermal and chemical resistance

Headers, Male Pins Applications

• High-speed data transmission interfaces requiring up to 8 Gbps performance
• Surface mount assembly on printed circuit boards
• Micro header applications with varied post height requirements

Headers, Male Pins Procurement Notes

Verify the specific suffix designation against official Samtec documentation to confirm exact termination style and mounting orientation. Ensure the selected variant matches the required surface mount or through-hole configuration. Confirm compliance with RoHS standards and check for SET qualification if high-reliability application criteria apply. Cross-reference the full part number to avoid confusion with similar pitch variants.

Headers, Male Pins Selection Notes

Select this component based on the requirement for a 64-position male header with a 0.05-inch pitch. Evaluate the need for surface mount versus through-hole termination options available within the series. Consider the mechanical locking feature for vibration resistance. Verify that the liquid crystal polymer insulator meets the environmental conditions of the target application.

Headers, Male Pins Part Context

This part belongs to the FTSH series of high-reliability header strips from Samtec. The series offers micro headers with various post heights and supports both surface mount and through-hole tail configurations. These connectors are designed to deliver up to 8 Gbps performance, making them suitable for demanding electronic interconnects.

Headers, Male Pins Replacement Considerations

FTSH-132-02-F-D-EC

Headers, Male Pins FAQ

What is the contact material used in this connector?

The contacts are made of phosphor bronze.

Does this connector support high-speed data transmission?

Yes, the FTSH series is capable of supporting performance up to 8 Gbps.
