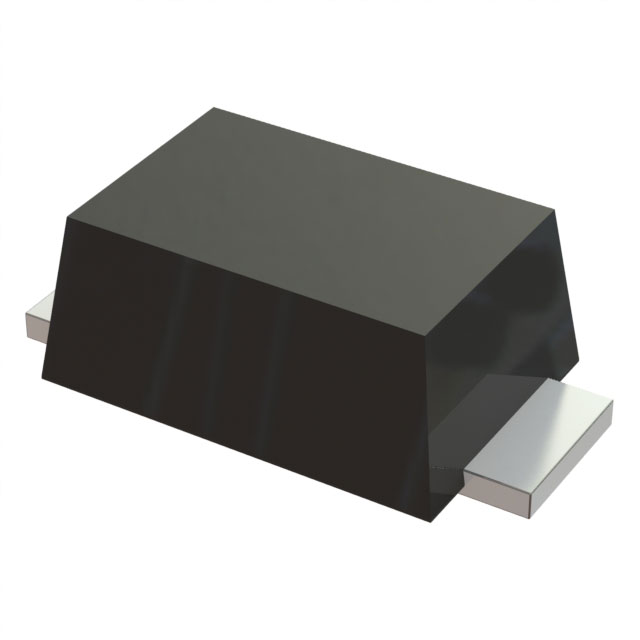

FUS1JE-7 is listed in the Single Diodes range at ChipApex. The manufacturer field lists Diodes Incorporated. Its product description is DIODE STANDARD 600V 1A F1A. Review the specifications below when checking this part for your BOM.
Single Diodes specifications for FUS1JE-7
- Description：DIODE STANDARD 600V 1A F1A
- Series：-
- Mfr：Diodes Incorporated
- Package：Tape & Reel (TR),Cut Tape (CT)
- Technology：Standard
- Voltage - DC Reverse (Vr) (Max)：600 V
- Current - Average Rectified (Io)：1A
- Voltage - Forward (Vf) (Max) @ If：1.7 V @ 1 A
- Speed：Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr)：75 ns
- Current - Reverse Leakage @ Vr：5 µA @ 600 V
- Capacitance @ Vr, F：18pF @ 4V, 1MHz
- Mounting Type：Surface Mount
- Package / Case：DO-219AA
- Supplier Device Package：F1A (DO219AA)
- Operating Temperature - Junction：-55°C ~ 150°C
- Grade：-
- Qualification：-
Single Diodes datasheet and documents for FUS1JE-7
Single Diodes Overview
The FUS1JE-7 is a surface mount fast recovery rectifier manufactured by Diodes Incorporated. It features a maximum repetitive peak reverse voltage of 600 V and a maximum DC blocking voltage of 600 V. The device supports a maximum average rectified forward current of 1.0 A at a case temperature of 90°C, with a peak forward surge current capability of 30 A for an 8.3 ms single half sine-wave. Electrical characteristics include a maximum forward voltage of 1.7 V at 1.0 A and 25°C, a typical junction capacitance of 18 pF, and a maximum reverse recovery time of 75 ns under specified test conditions.
Single Diodes Feature Summary
- Fast switching performance designed to support high efficiency applications
- Glass passivated chip construction ensuring low reverse leakage current
- Low forward voltage drop combined with high current capability
Single Diodes Applications
- Surface mounted rectification circuits
- High frequency power conversion systems
- General purpose fast recovery diode applications
Single Diodes Procurement Notes
Verify the specific ordering suffix matches the required packing quantity and carrier type. Confirm that the component meets all applicable RoHS directives and halogen-free requirements for your manufacturing process. Ensure thermal management strategies align with the provided derating curves and thermal resistance values during system integration.
Single Diodes Selection Notes
Select this component when a 600 V reverse voltage rating and 1.0 A continuous forward current are required in a compact surface mount package. Evaluate the 75 ns reverse recovery time against the switching frequency of the target circuit to ensure adequate performance. Consider the thermal resistance parameters and derating curves to maintain safe operating temperatures under expected load conditions.
Single Diodes Part Context
This part belongs to the family of surface mount fast recovery rectifiers produced by Diodes Incorporated. It utilizes a JEDEC DO-219AA (F1A) package configuration. The device incorporates glass passivation technology to enhance reliability and electrical stability compared to non-passivated alternatives within the same voltage and current class.
Single Diodes Replacement Considerations
Consult official manufacturer substitution lists or cross-reference databases for verified equivalent parts. Ensure any replacement maintains identical voltage ratings, current capabilities, and package dimensions to guarantee mechanical and electrical compatibility without redesigning the host circuit board.
