FW3840022Z

Crystals Overview

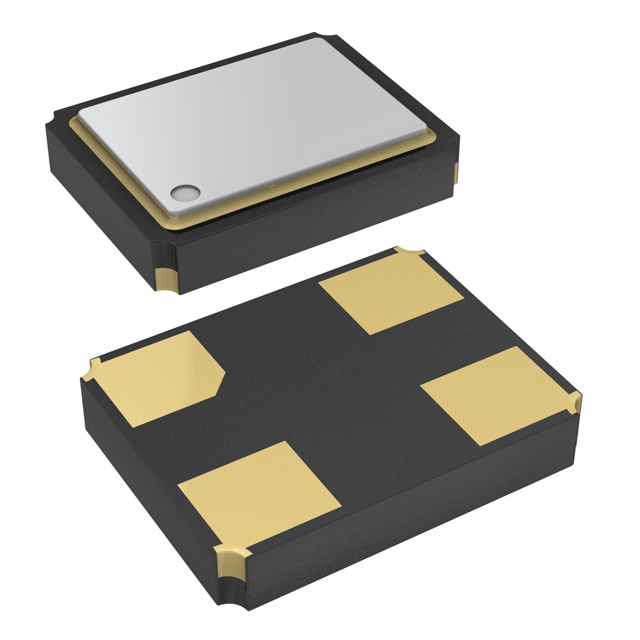

FW3840022Z is a surface-mount crystal oscillator manufactured by Diodes Incorporated, operating at a fundamental frequency of 38.4000 MHz. The device utilizes CMOS output logic and requires a 3.3V supply voltage. It features a frequency tolerance of ±20 ppm and stability of ±60 ppm across the industrial temperature range of -40°C to +105°C. The component is housed in a compact 4-SMD, no-lead package with dimensions of 2.00mm x 1.60mm x 1.00mm maximum height. It belongs to the SaRonix-eCera FW series and is designed for automated assembly processes.

Crystals Feature Summary

• Utilizes fundamental mode operation for precise frequency generation
• Designed for high reliability in automated surface-mount assembly
• Operates within an extended industrial temperature range

Crystals Applications

• Clock signal generation for digital circuits
• Embedded system timing references
• Communication module synchronization

Crystals Procurement Notes

Verify the specific order code against manufacturer documentation to ensure correct frequency and tolerance specifications. Confirm that the 4-SMD package dimensions align with the target PCB footprint. Check current availability status as distribution channels may vary. Ensure compliance with RoHS3 and REACH regulations for the intended market. Validate supply chain authenticity through authorized distributors.

Crystals Selection Notes

Select this component when a stable 38.4 MHz reference is required in space-constrained designs. The CMOS output interface simplifies integration with standard logic families. Consider the ±20 ppm tolerance for applications requiring moderate frequency accuracy. The small form factor supports high-density board layouts. Evaluate thermal performance within the specified -40°C to +105°C operational range.

Crystals Part Context

The FW3840022Z belongs to the SaRonix-eCera FW series of surface-mount crystals from Diodes Incorporated. This series focuses on providing reliable timing solutions for consumer and industrial electronics. The component represents a shift towards smaller footprints while maintaining electrical performance standards typical of modern embedded systems.

Crystals Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
