FWPQ3225-4628-RC

Overview

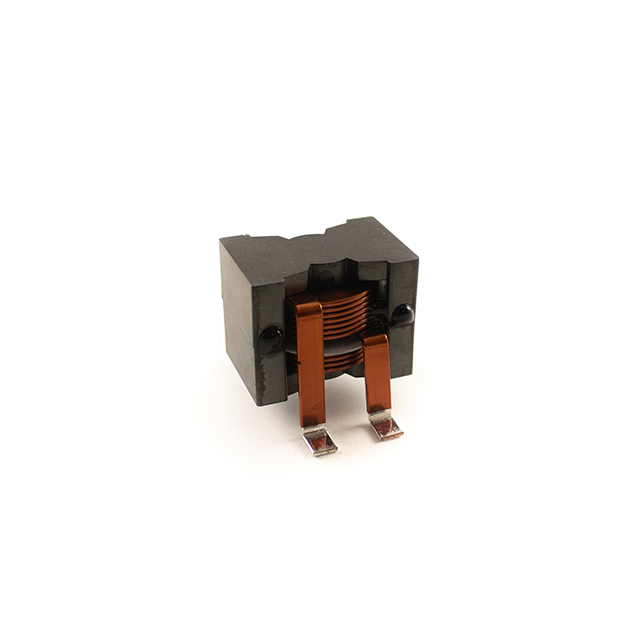

The FWPQ3225-4628-RC is a flat wire surface mount power transformer manufactured by Allied Components International. It features an inductance of 360µH and supports a voltage rating of 72V. The component utilizes a PQ3225 core geometry with flat wire winding technology to optimize space efficiency and thermal performance. Designed for high-frequency switching applications, it offers a turns ratio of 2:1 and integrates robust insulation capabilities suitable for isolated power conversion circuits.

Feature Summary

• Flat wire construction for enhanced packing density
• Surface mount design for automated assembly
• High isolation voltage capability
• Optimized magnetic core geometry

Applications

• Flyback converter topologies
• Isolated DC-DC power supplies
• Off-line switch mode power adapters
• Industrial control system power stages

Procurement Notes

Verify the specific datasheet revision before procurement to ensure compatibility with current manufacturing standards. Confirm that the 360µH inductance value aligns precisely with your circuit design requirements. Check for RoHS compliance status if environmental regulations apply to your production environment. Ensure storage conditions meet moisture sensitivity level specifications to prevent degradation prior to soldering.

Selection Notes

Select this component when space constraints require a compact surface mount solution with high inductance values. The flat wire technology provides superior thermal dissipation compared to round wire alternatives. Consider the 72V rating to ensure adequate margin for peak voltage transients in your application. Evaluate the PQ3225 footprint against your PCB layout restrictions to confirm mechanical fit.

Part Context

This part belongs to the FWPQ series of flat wire transformers from Allied Components International. The series focuses on providing high-performance magnetic components for modern power electronics. The PQ3225 designation indicates the specific core size and shape used in the construction. This model represents a standard offering within their portfolio of surface mount power transformers.

Replacement Considerations

Direct substitutes may include other PQ3225-based transformers with matching 360µH inductance and 2:1 ratio. Verify pinout compatibility and physical dimensions before swapping. Alternative manufacturers may offer similar specifications but require electrical re-validation. Cross-reference with Allied Components' official replacement guide for approved equivalents.
