FXP74.07.0100A

Antennas RF Overview

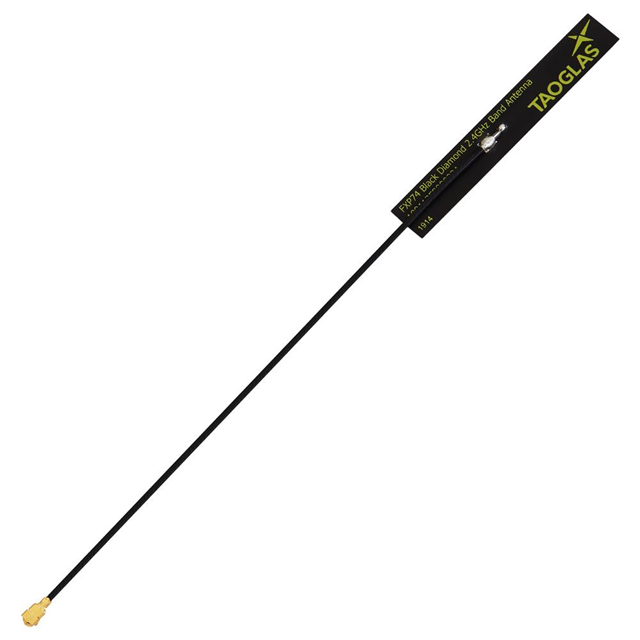

The FXP74.07.0100A is a flexible, ultra-low profile PCB antenna from the Black Diamond series by Taoglas Limited. It operates within the 2.4GHz to 2.4835GHz frequency range, supporting standards such as Bluetooth, Wi-Fi, and Zigbee (802.15.4). The component features a peak gain of 4dBi at 2.4GHz with efficiencies exceeding 50%. It utilizes linear polarization and maintains a 50-ohm impedance. The physical dimensions are 14mm x 7.0mm x 0.1mm, constructed from flexible polymer material. Mounting is achieved via adhesive backing, and it includes an I-PEX MHF1 connector interface.

Antennas RF Feature Summary

• Ultra-low profile flexible polymer construction for compact integration
• High efficiency performance exceeding 50% with 4dBi peak gain
• Adhesive mounting method for secure attachment to host devices

Antennas RF Applications

• Bluetooth wireless communication modules
• Wi-Fi enabled IoT devices
• Zigbee sensor networks

Antennas RF Procurement Notes

Verify the specific connector type and cable length requirements against the system design before ordering. Confirm that the adhesive backing is compatible with the target substrate material to ensure reliable mechanical retention. Check for any specific environmental ratings if the application involves extreme temperatures or humidity. Ensure the RF circuitry matches the 50-ohm impedance specification for optimal signal transfer.

Antennas RF Selection Notes

Select this antenna when space constraints require an ultra-low profile solution under 0.1mm thickness. The flexible nature allows for installation on curved surfaces where rigid antennas cannot fit. Consider the 4dBi gain requirement for applications needing moderate range without excessive power consumption. Verify compatibility with the required wireless protocols including Bluetooth, Wi-Fi, and Zigbee standards.

Antennas RF Part Context

This component belongs to the Black Diamond series, which focuses on high-performance, low-profile antennas for modern wireless devices. The FXP74 model specifically addresses the need for compact form factors in portable electronics. It represents a solution for integrating multiple 2.4GHz radio technologies into a single small footprint device.

Antennas RF Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
