FY2500102

Crystals Overview

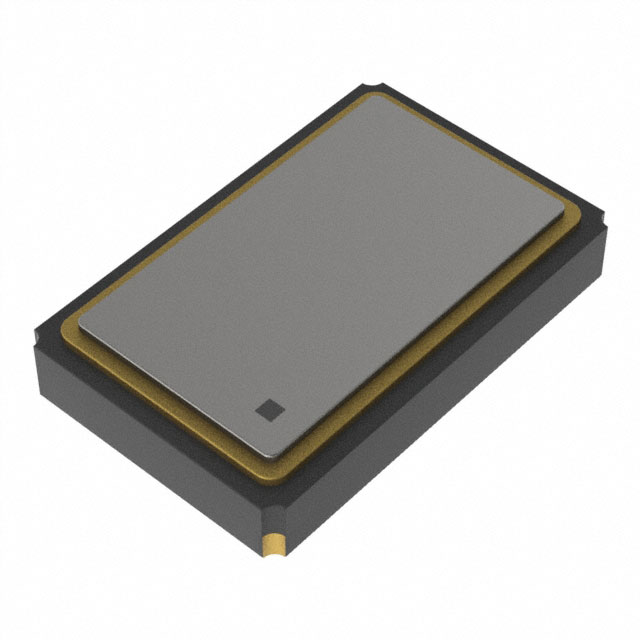

The FY2500102 is a quartz crystal oscillator manufactured by Diodes Incorporated, designed for surface-mount technology applications. It operates at a fundamental frequency of 25 MHz with a load capacitance of 15 pF and an equivalent series resistance of 50 Ohms. The component features a frequency tolerance of ±20 ppm and stability of ±20 ppm across the commercial temperature range of -20°C to +70°C. Housed in a compact 4-SMD, No Lead package measuring 3.2 mm x 2.5 mm x 0.65 mm, it supports standard SMT assembly processes.

Crystals Feature Summary

• Provides precise timing reference signals for digital circuits
• Supports surface-mount integration for automated PCB assembly
• Maintains frequency accuracy within specified commercial temperature limits

Crystals Applications

• Microcontroller clock inputs
• System-on-chip timing references
• Digital signal processing circuits

Crystals Procurement Notes

Verify the specific load capacitance requirement against the target circuit design, as this component utilizes a 15 pF load specification which differs from other variants in the series. Confirm that the operating environment remains within the stated -20°C to +70°C range to ensure compliance with the published frequency stability metrics. Cross-reference the package dimensions with the board layout footprint to guarantee mechanical fit during assembly.

Crystals Selection Notes

Select this component when a 25 MHz reference is required for commercial-grade applications utilizing surface-mount assembly. Ensure the host oscillator stage can accommodate the 50 Ohm ESR and 15 pF load capacitance without exceeding the drive level specifications. Consider alternative packages if space constraints differ from the standard 3.2 mm x 2.5 mm form factor.

Crystals Part Context

This part belongs to the SaRonix-eCera family of quartz crystals produced by Diodes Incorporated. The FL and FY series share similar dimensional profiles but may vary in electrical parameters such as load capacitance and tolerance. This specific model represents a standard commercial-grade option suitable for general-purpose timing applications where moderate precision is sufficient.

Crystals Replacement Considerations

FL2500283Z offers similar dimensions but specifies 18 pF load capacitance and 20 ppm tolerance; verify circuit compatibility before substitution. FY2500102 variants with different suffixes may alter tolerance or temperature ranges.
