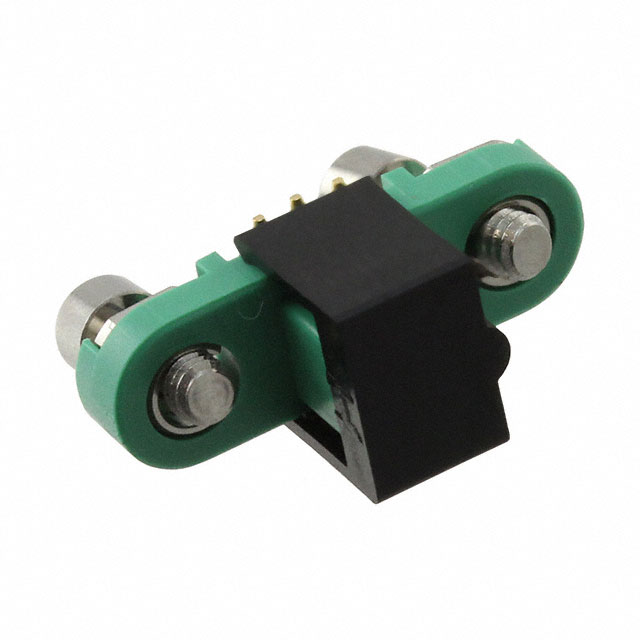

G125-FS10605F1P

Description：CONN RCPT 6POS 0.049 GOLD SMD
Series：Gecko SL
Mfr：Harwin Inc.
Package：Bulk

SKU:570f3e60d836 Category: Headers, Receptacles, Female Sockets Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN RCPT 6POS 0.049 GOLD SMD
Series：Gecko SL
Mfr：Harwin Inc.
Package：Bulk
Connector Type：Receptacle
Contact Type：Female Socket
Style：Board to Board or Cable
Number of Positions：6
Number of Positions Loaded：All
Pitch - Mating：0.049" (1.25mm)
Number of Rows：2
Row Spacing - Mating：0.049" (1.25mm)
Mounting Type：Surface Mount
Termination：Solder
Fastening Type：Screw Lock
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：8.00µin (0.203µm)
Insulation Color：Green
Insulation Height：0.207" (5.25mm)
Contact Length - Post：-
Operating Temperature：-65°C ~ 105°C
Material Flammability Rating：UL94 V-0
Contact Finish - Post：Gold
Mated Stacking Heights：-
Ingress Protection：-
Features：Jackscrews, Pick and Place, Polarizing Key
Current Rating (Amps)：2A
Voltage Rating：-

Download product information

G125-FS10605F1P

Overview

The G125-FS10605F1P is a 6-position female receptacle connector from the Harwin Gecko SL series. It features a 1.25 mm (0.049 inch) pitch and is designed for vertical surface mount technology (SMT) installation. The component utilizes gold-plated phosphor bronze contacts housed in a green polyamide (PA) insulator, rated for UL 94 V-0 flammability. It supports a maximum operating temperature of +150°C and a minimum of -65°C, with an insulation resistance of 1 GOhm.

Feature Summary

Vertical surface mount design for automated PCB assembly
Gold-plated phosphor bronze contacts ensure reliable signal transmission
Green polyamide housing provides UL 94 V-0 flame retardancy

Applications

High-density electronic circuit boards requiring compact interconnects
Industrial control systems operating within extreme temperature ranges
Automotive electronics utilizing surface mount mounting styles

Procurement Notes

Verify the specific suffix 'P' indicates tape and reel packaging configuration as per official datasheets. Confirm that the part number corresponds to the female vertical SMT variant within the Gecko SL family. Ensure compatibility with standard SMT reflow profiles given the polyamide material composition and thermal ratings specified by the manufacturer.

Selection Notes

Select this component when a low-profile, vertical female connector is required for space-constrained designs. The 1.25 mm pitch allows for high pin density compared to larger spacing standards. Consider the +150°C thermal rating for applications involving significant heat generation or high ambient temperatures during operation.

Part Context

This part belongs to the Harwin Gecko SL series, which focuses on micro-miniature connectors. The series is characterized by its small form factor and robust mechanical locking mechanisms. The G125-FS10605F1P specifically addresses the need for reliable surface-mounted female connections in modern electronics manufacturing.
