Product Detailed Parameters
- Description：CONN RCPT 6POS 0.049 GOLD SMD
- Series：Gecko SL Reverse Fix
- Mfr：Harwin Inc.
- Package：Strip
- Connector Type：Receptacle
- Contact Type：Female Socket
- Style：Board to Board or Cable
- Number of Positions：6
- Number of Positions Loaded：All
- Pitch - Mating：0.049" (1.25mm)
- Number of Rows：2
- Row Spacing - Mating：0.049" (1.25mm)
- Mounting Type：Surface Mount
- Termination：Solder
- Fastening Type：Screw Lock
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：8.00µin (0.203µm)
- Insulation Color：Green
- Insulation Height：0.207" (5.25mm)
- Contact Length - Post：-
- Operating Temperature：-65°C ~ 150°C
- Material Flammability Rating：UL94 V-0
- Contact Finish - Post：Gold
- Mated Stacking Heights：7.33mm, 7.4mm
- Ingress Protection：-
- Features：Pick and Place, Polarizing Key
- Current Rating (Amps)：2A
- Voltage Rating：450V
Download product information
Overview

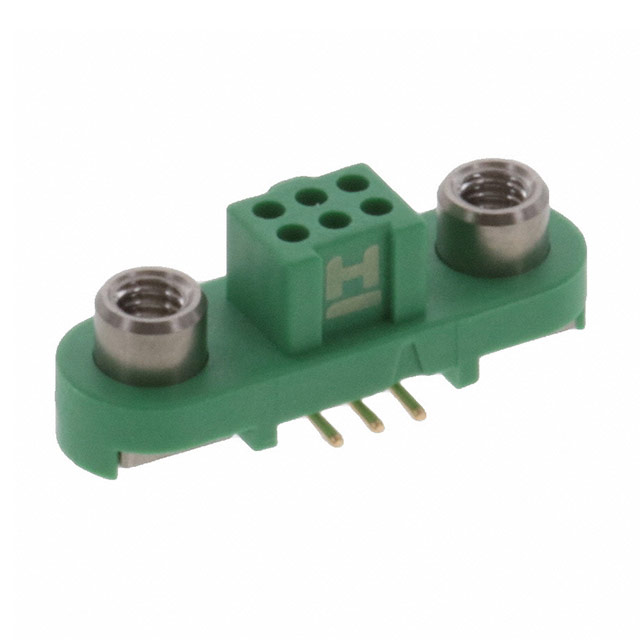

The Harwin G125-FS10605F2P is a Gecko-SL series power-to-board connector featuring a 6-position, 2-row female socket configuration. It utilizes a 1.25 mm pitch with vertical surface mount termination and reverse fix mounting style. The component operates within a temperature range of -65°C to +150°C, rated for 2 A current and 450 V voltage. Contacts are gold-plated beryllium copper housed in green nylon.
Feature Summary
- Patented four-finger contact design ensures reliable electrical connection under high vibration and shock conditions.
- Reverse fix mounting style provides secure board attachment for vertical surface mount applications.
- Green polyamide insulation housing offers UL 94 V-0 flammability rating and halogen-free composition.
Applications
- High-reliability power distribution in industrial equipment
- Automotive electronics requiring shock resistance
- Consumer devices needing compact vertical interconnects
Procurement Notes
Verify RoHS and REACH compliance status through official manufacturer documentation before integration. Confirm that the specific suffix denotes tape and reel packaging suitable for automated assembly processes. Ensure compatibility with mating male headers from the same Gecko-SL family to maintain mechanical and electrical integrity.
Selection Notes
Select this part for applications demanding robust performance in harsh environments due to its patented contact technology. The vertical orientation and reverse fix mechanism optimize space efficiency on densely populated boards. Verify that the 1.25 mm pitch aligns with existing layout constraints and mating connector specifications.
Part Context
This component belongs to the Harwin Gecko-SL series, designed for micro-miniature applications. It complements male counterparts like the G125-MH10605M4R to form complete interconnect systems. The series emphasizes high reliability and compact form factors for modern electronic designs.
Replacement Considerations
No public confirmed substitute part numbers are available. Direct replacement requires identical Gecko-SL series components with matching pitch and contact configuration.
FAQ
What is the contact material?
The contacts are made of beryllium copper with gold plating.
Does it support automated assembly?
Yes, it is supplied in tape and reel packaging for pick-and-place machines.
