G125-FS10605F2R

Overview

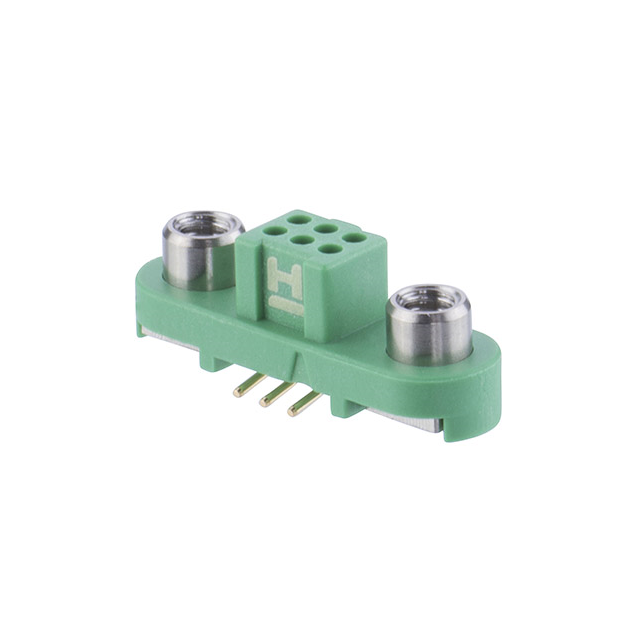

The G125-FS10605F2R is a Gecko-SL series power-to-board connector manufactured by Harwin. It features a 1.25 mm pitch with 6 positions arranged in a double-row configuration. The component utilizes female socket contacts made of beryllium copper with gold plating, rated for 2 A current and 450 V voltage. Designed for vertical surface mount installation, it includes mounting flanges for secure attachment. The housing is constructed from green nylon, supporting an operating temperature range from -65°C to +150°C.

Feature Summary

• Patented four-finger contact design ensures reliable electrical connection under high vibration and shock conditions.
• Integrated reverse fix mounting flanges provide enhanced mechanical stability during surface mount assembly.
• Factory-applied pick-and-place cap facilitates automated handling and precise placement on PCBs.

Applications

• High-reliability industrial control systems requiring robust power connections
• Automotive electronics subjected to significant mechanical stress and vibration
• Aerospace and defense equipment demanding verified signal integrity

Procurement Notes

Verify the specific suffix F2R confirms tape and reel packaging with pick-and-place caps as documented. Confirm RoHS compliance status through official Harwin documentation prior to integration. Ensure procurement channels are authorized to guarantee component authenticity and traceability. Check for any recent product change notifications that may affect material composition or manufacturing origin.

Selection Notes

Select this component when vertical surface mount geometry is required for space-constrained designs. The 1.25 mm pitch allows for dense board layouts while maintaining adequate spacing. Choose the female socket variant to mate with corresponding male headers. Consider the integrated mounting flanges if additional mechanical retention is needed beyond standard solder joints.

Part Context

This part belongs to the Harwin Gecko-SL family, designed for micro-miniature applications. The series emphasizes high reliability through patented contact technology. The G125-FS10605F2R specifically addresses power distribution needs in harsh environments where standard connectors might fail due to vibration or thermal cycling.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Direct replacement requires matching the 1.25 mm pitch, 6-position double-row configuration, and vertical SMT mounting style. Verify compatibility with mating male connectors before substitution.
