Product Detailed Parameters
- Description：CONN RCPT 6POS 0.049 GOLD SMD
- Series：Gecko SL
- Mfr：Harwin Inc.
- Package：Strip
- Connector Type：Receptacle
- Contact Type：Female Socket
- Style：Board to Board or Cable
- Number of Positions：6
- Number of Positions Loaded：All
- Pitch - Mating：0.049" (1.25mm)
- Number of Rows：2
- Row Spacing - Mating：0.049" (1.25mm)
- Mounting Type：Surface Mount
- Termination：Solder
- Fastening Type：Screw Lock
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：8.00µin (0.203µm)
- Insulation Color：Green
- Insulation Height：0.207" (5.25mm)
- Contact Length - Post：-
- Operating Temperature：-65°C ~ 150°C
- Material Flammability Rating：UL94 V-0
- Contact Finish - Post：Gold
- Mated Stacking Heights：7.33mm, 7.4mm
- Ingress Protection：-
- Features：Jackscrews, Pick and Place, Polarizing Key
- Current Rating (Amps)：2A
- Voltage Rating：450V
Download product information
Overview

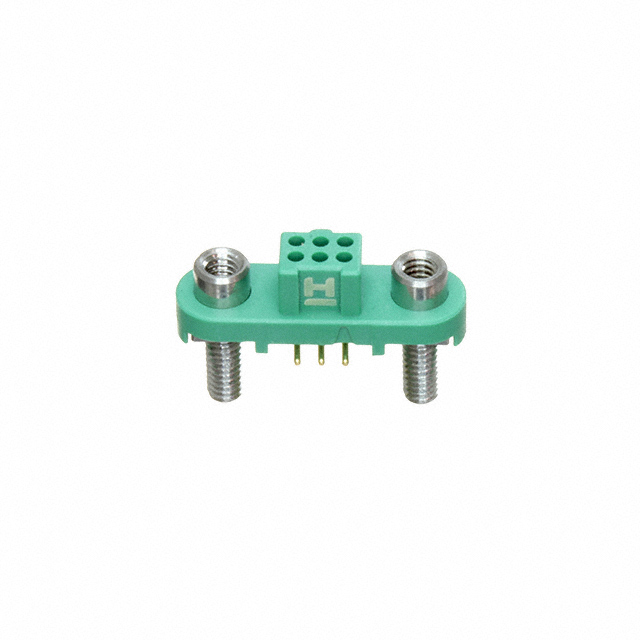

The Harwin G125-FS10605F3P is a Gecko-SL series power-to-the-board connector featuring a 1.25 mm pitch and 6 positions in a 2x3 configuration. It utilizes female sockets with gold-plated beryllium copper contacts rated for 2 A current. The component employs vertical surface mount technology with reverse fix tape packaging. Constructed from green nylon, it operates within a temperature range of -65°C to +150°C.
Feature Summary
- Vertical surface mount design with reverse fix tape for automated assembly
- Jackscrew locking mechanism ensures secure mating stability
- Gold-plated beryllium copper contacts provide reliable electrical performance
Applications
- Compact electronic device interconnects
- Industrial control system signal routing
- Automotive embedded module connections
Procurement Notes
Verify the specific suffix F3P against official Harwin documentation to confirm the reverse fix tape orientation and packaging format. Ensure compatibility with existing PCB footprint designs and mating jack screw hardware. Confirm RoHS compliance status through the manufacturer's latest environmental declaration before final procurement authorization.
Selection Notes
Select this component when a low-profile vertical SMT solution with mechanical locking is required. The 1.25 mm pitch allows for dense circuit board layouts. Verify that the reverse fix tape requirement aligns with the assembly line's pick-and-place capabilities and that the 2 A current rating meets the application's electrical load demands.
Part Context
This part belongs to the Harwin Gecko-SL family, designed for micro-miniature applications. The series emphasizes high-density connectivity with robust mechanical retention. The G125-FS10605F3P specifically addresses needs for vertically mounted, locked connectors in space-constrained environments requiring reliable signal transmission.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Cross-referencing requires matching the 1.25 mm pitch, 2x3 female socket configuration, vertical SMT mounting style, and jackscrew locking mechanism.
