Product Detailed Parameters
- Description：CONN RCPT 6POS 0.049 GOLD SMD
- Series：Gecko
- Mfr：Harwin Inc.
- Package：Strip
- Connector Type：Receptacle
- Contact Type：Female Socket
- Style：Board to Board or Cable
- Number of Positions：6
- Number of Positions Loaded：All
- Pitch - Mating：0.049" (1.25mm)
- Number of Rows：2
- Row Spacing - Mating：0.049" (1.25mm)
- Mounting Type：Surface Mount
- Termination：Solder
- Fastening Type：Latch Holder
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：8.00µin (0.203µm)
- Insulation Color：Green
- Insulation Height：0.207" (5.25mm)
- Contact Length - Post：-
- Operating Temperature：-65°C ~ 150°C
- Material Flammability Rating：UL94 V-0
- Contact Finish - Post：Gold
- Mated Stacking Heights：-
- Ingress Protection：-
- Features：Pick and Place, Polarizing Key
- Current Rating (Amps)：2A
- Voltage Rating：-
Download product information
Overview

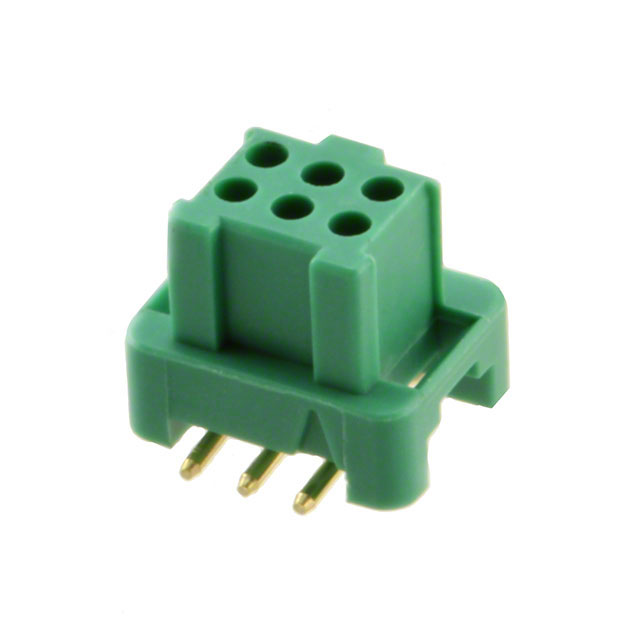

The G125-FS10605L0P is a female socket receptacle connector from the Harwin Gecko SL series, designed for surface mount technology. It features a 1.25 mm (0.049 inch) pitch with a 2x3 position configuration, totaling six contacts. The housing is constructed from green nylon, and the contacts are gold-plated beryllium copper. Rated for 2 A current at 250 V, it operates within a temperature range of -65°C to +150°C. This component utilizes vertical orientation and solder pin termination for secure PCB attachment.
Feature Summary
- Vertical surface mount design for compact board integration
- Gold-plated beryllium copper contacts for reliable conductivity
- Green nylon housing providing UL 94 V-0 flammability rating
- Jackscrew locking mechanism ensures secure mating stability
Applications
- Power distribution in industrial control systems
- Signal interconnection in automotive electronics
- Board-to-board connections in telecommunications equipment
- Consumer electronic device internal wiring
Procurement Notes
Verify the specific suffix L0P against the official Harwin datasheet to confirm the exact contact count and packaging format. Ensure compatibility with the corresponding male plug components within the Gecko SL series for proper mechanical engagement. Check for RoHS compliance documentation if required by project specifications.
Selection Notes
Select this part when a low-profile, vertically oriented female connector is required for high-density applications. The 1.25 mm pitch allows for significant I/O density on limited board space. Consider the jack screw feature if vibration resistance is critical. Confirm that the surface mount footprint matches the target PCB layout constraints.
Part Context
This component belongs to the Harwin Gecko SL family, which specializes in micro-miniature connectors. The series is characterized by its small form factor and robust locking mechanisms. The G125 prefix indicates the specific product line within the broader Gecko ecosystem, focusing on signal and power applications requiring high reliability.
Replacement Considerations
No direct substitute part numbers are publicly confirmed in the provided documentation. Cross-referencing requires matching the 1.25 mm pitch, 6-position female configuration, and surface mount vertical orientation. Consult Harwin technical support for validated alternatives if this specific variant is unavailable.
