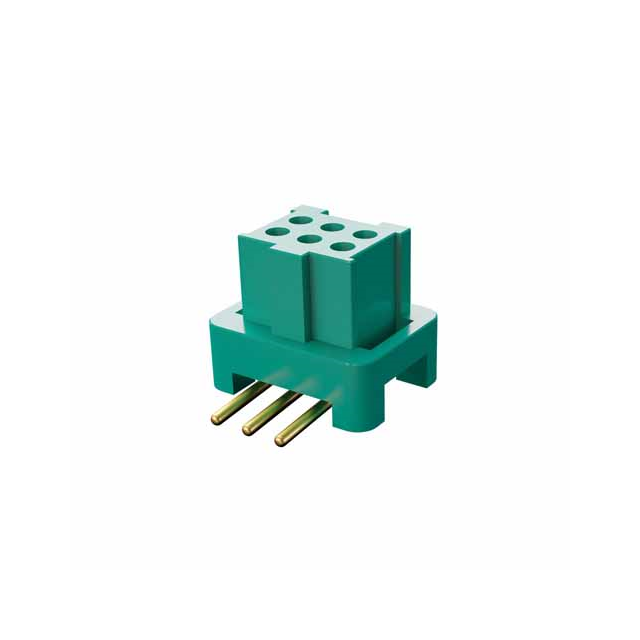

G125-FS10605L0R

$7.95

Description：CONN RCPT 6POS 0.049 GOLD SMD
Series：Gecko
Mfr：Harwin Inc.
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:4a4b274126fe Category: Headers, Receptacles, Female Sockets Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN RCPT 6POS 0.049 GOLD SMD
Series：Gecko
Mfr：Harwin Inc.
Package：Tape & Reel (TR),Cut Tape (CT)
Connector Type：Receptacle
Contact Type：Female Socket
Style：Board to Board or Cable
Number of Positions：6
Number of Positions Loaded：All
Pitch - Mating：0.049" (1.25mm)
Number of Rows：2
Row Spacing - Mating：0.049" (1.25mm)
Mounting Type：Surface Mount
Termination：Solder
Fastening Type：Latch Holder
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：8.00µin (0.203µm)
Insulation Color：Green
Insulation Height：0.207" (5.25mm)
Contact Length - Post：-
Operating Temperature：-65°C ~ 150°C
Material Flammability Rating：UL94 V-0
Contact Finish - Post：Gold
Mated Stacking Heights：-
Ingress Protection：-
Features：Pick and Place, Polarizing Key
Current Rating (Amps)：2A
Voltage Rating：-

Download product information

G125-FS10605L0R

Overview

The Harwin G125-FS10605L0R is a Gecko-SL series power-to-board connector featuring a 1.25 mm pitch and 6 positions in a 2x3 vertical surface-mount configuration. It utilizes female sockets with gold-plated beryllium copper contacts rated for 2 A current. The housing is green nylon, designed for reverse fixing, and supports solder termination. Operating temperatures range from -65°C to +150°C.

Feature Summary

Vertical surface-mount design with reverse fixing capability
Gold-plated beryllium copper female socket contacts
Green nylon insulation housing

Applications

Power distribution on printed circuit boards
High-density electronic assemblies requiring vertical mounting
Industrial equipment internal power connections

Procurement Notes

Verify the specific suffix 'L0' against official datasheets to confirm tape-and-reel packaging details. Confirm RoHS compliance status through manufacturer documentation prior to integration. Ensure the reverse-fixing orientation aligns with the mechanical layout requirements of the target assembly.

Selection Notes

Select this component for applications necessitating a low-profile vertical connection with secure reverse fixing. The 1.25 mm pitch allows for compact board layouts while maintaining reliable power transmission. Verify that the 2 A current rating meets the thermal and electrical demands of the specific circuit path.

Part Context

This part belongs to the Harwin Gecko-SL family, characterized by micro-miniature connectors for high-reliability applications. The G125 series offers various configurations including through-hole and right-angle options. This specific model focuses on vertical SMT implementation for efficient space utilization.
