G125-FS11005F1P

Overview

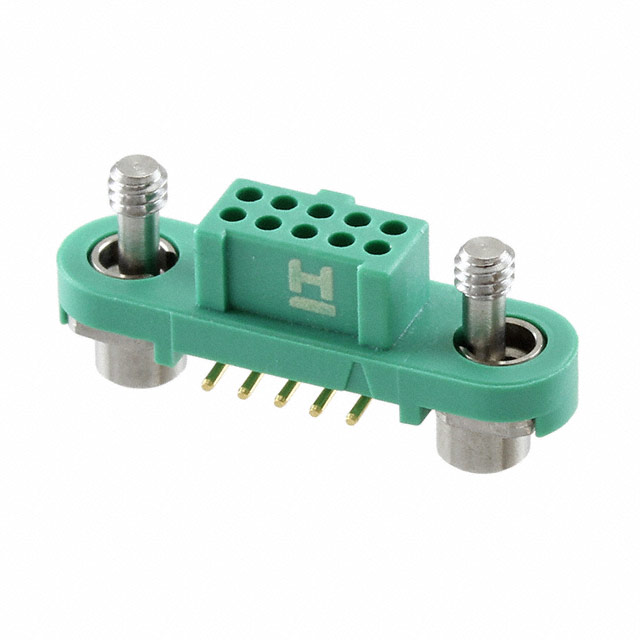

The Harwin G125-FS11005F1P is a 10-position female vertical surface-mount connector from the Gecko-SL series. It features a 1.25 mm pitch and utilizes a screw-lock board mount mechanism for secure attachment. The component is designed for high-reliability applications, offering robust mechanical stability through its locking system.

Feature Summary

• Vertical surface-mount design for compact PCB integration
• Screw-lock board mount mechanism ensures secure connection
• 10-position configuration with 1.25 mm pitch

Applications

• Board-to-board connections requiring high reliability
• Compact electronic assemblies with space constraints
• Industrial equipment needing secure mounting solutions

Procurement Notes

Verify the specific suffix 'P' indicates tape and reel packaging when sourcing. Confirm RoHS compliance status via the manufacturer datasheet before integration. Ensure compatibility with the Gecko-SL mating header series to maintain proper electrical and mechanical interface standards.

Selection Notes

Select this part for applications demanding vertical SMT assembly with enhanced mechanical retention. The screw-lock feature distinguishes it from standard latching connectors, providing superior vibration resistance. Verify that the 1.25 mm pitch aligns with the target PCB footprint and mating component requirements.

Part Context

This component belongs to the Harwin Gecko-SL family, which specializes in high-density interconnect solutions. The series is engineered for environments requiring durable connections, combining small form factors with robust locking mechanisms suitable for demanding industrial and commercial electronics.

Replacement Considerations

No direct public substitute part numbers are confirmed for this specific variant. Cross-reference with other Gecko-SL vertical SMT headers only if the screw-lock feature is not critical.
