G125-FS11005F2P

Overview

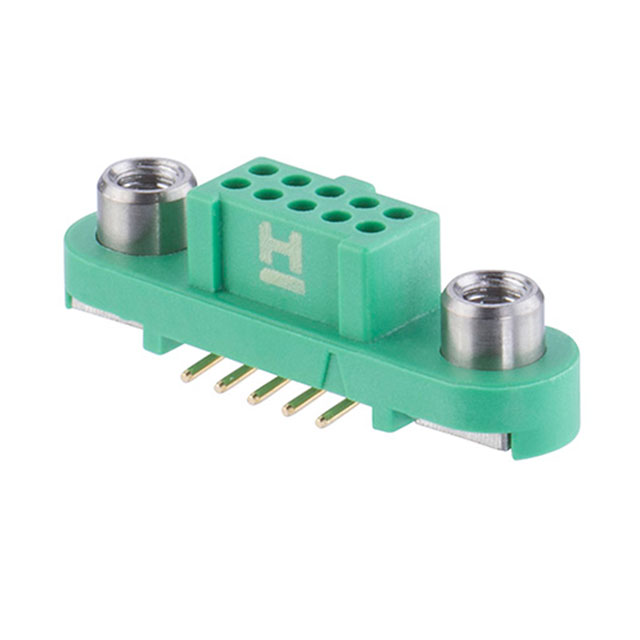

The Harwin G125-FS11005F2P is a Gecko-SL series power-to-board connector designed for vertical surface-mount applications. It features a 1.25mm pitch with a 2x5 configuration, providing ten positions. The component utilizes reverse fixing mechanisms and is supplied in tape-and-reel packaging to support automated pick-and-place assembly processes.

Feature Summary

• Vertical surface-mount design optimized for space-constrained PCB layouts
• Reverse fixing mechanism ensures secure board attachment
• Tape-and-reel packaging facilitates high-volume automated assembly

Applications

• Power distribution modules requiring vertical interconnects
• Automated manufacturing environments utilizing pick-and-place equipment
• Compact electronic systems with limited board height clearance

Procurement Notes

Verify the specific suffix F2P against official datasheets to confirm the reverse fix orientation and tape-and-reel packaging format. Ensure compatibility with automated placement machines by checking reel specifications. Cross-reference the manufacturer's latest documentation to confirm current availability status and any potential product change notifications affecting this specific variant.

Selection Notes

Select this component when vertical mounting is required for power connections in dense assemblies. The reverse fix feature provides mechanical stability distinct from standard headers. Verify that the 1.25mm pitch matches the mating connector requirements. Consider the tape-and-reel format if high-speed automated production lines are utilized for assembly.

Part Context

This part belongs to the Harwin Gecko-SL family, which specializes in power-to-board solutions. The series offers various configurations including through-hole and surface-mount options. The G125 prefix indicates the 1.25mm pitch standard, while the FS designation identifies it as a female socket header within the broader connector ecosystem.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
