Product Detailed Parameters

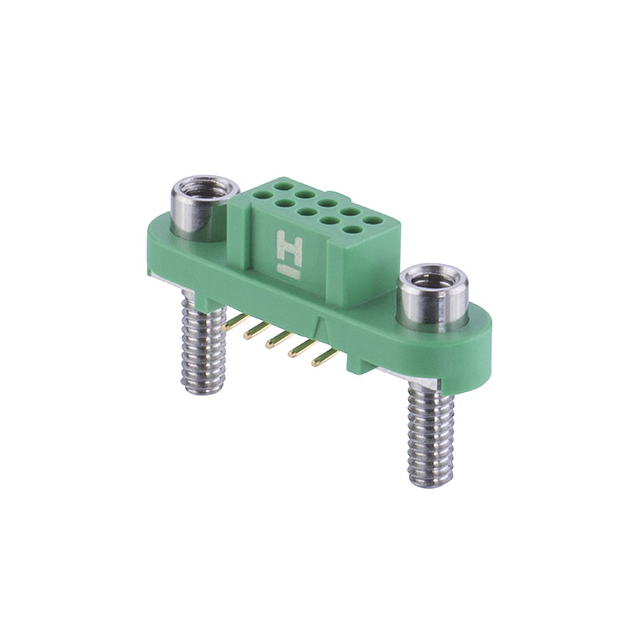

- Description：CONN RCPT 10POS 0.049 GOLD SMD
- Series：Gecko SL Reverse Fix
- Mfr：Harwin Inc.
- Package：Tape & Reel (TR)
- Connector Type：Receptacle
- Contact Type：Female Socket
- Style：Board to Board or Cable
- Number of Positions：10
- Number of Positions Loaded：All
- Pitch - Mating：0.049" (1.25mm)
- Number of Rows：2
- Row Spacing - Mating：0.049" (1.25mm)
- Mounting Type：Surface Mount
- Termination：Solder
- Fastening Type：Screw Lock
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：8.00µin (0.203µm)
- Insulation Color：Green
- Insulation Height：0.207" (5.25mm)
- Contact Length - Post：-
- Operating Temperature：-65°C ~ 150°C
- Material Flammability Rating：UL94 V-0
- Contact Finish - Post：Gold
- Mated Stacking Heights：7.33mm, 7.4mm
- Ingress Protection：-
- Features：Jackscrews, Pick and Place, Polarizing Key
- Current Rating (Amps)：2A
- Voltage Rating：450V
Download product information
Overview
The G125-FS11005F3R is a Gecko-Latch series power-to-board connector manufactured by Harwin Inc. It features a vertical surface-mount design with a 1.25 mm pitch and 10 positions arranged in two rows. The socket contacts are gold-plated copper alloy, rated for 2 A current and 250 V voltage. Constructed with a polyamide housing, it supports solder termination and operates within a temperature range of -65 °C to +150 °C.
Feature Summary
- Vertical surface-mount architecture for compact board integration
- Gold-plated copper alloy contacts ensure reliable signal integrity
- Polyamide insulation provides high thermal stability
Applications
- Power distribution modules
- Industrial control systems
- Telecommunications equipment
Procurement Notes
Verify the specific suffix F3R against official datasheets to confirm packaging type and plating specifications. Ensure compatibility with mating pin headers from the same Gecko-Latch family. Cross-reference RoHS compliance status directly with manufacturer documentation before finalizing procurement orders.
Selection Notes
Select this component when a low-profile vertical interconnect is required for power applications. The 1.25 mm pitch allows for dense circuit layouts. Verify that the 2 A current rating meets system requirements. Confirm that the surface-mount footprint aligns with PCB design constraints and reflow soldering profiles.
Part Context
This part belongs to the Harwin Gecko-Latch family, designed for robust power connections. It complements other connectors like the G125-MV series male headers. The series emphasizes secure latching mechanisms and high-density connectivity solutions for modern electronic assemblies requiring reliable power delivery.
