Product Detailed Parameters
- Description：CONN RCPT 16POS 0.049 GOLD SMD
- Series：Gecko
- Mfr：Harwin Inc.
- Package：Strip
- Connector Type：Receptacle
- Contact Type：Female Socket
- Style：Board to Board or Cable
- Number of Positions：16
- Number of Positions Loaded：All
- Pitch - Mating：0.049" (1.25mm)
- Number of Rows：2
- Row Spacing - Mating：0.049" (1.25mm)
- Mounting Type：Surface Mount
- Termination：Solder
- Fastening Type：Latch Holder
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：8.00µin (0.203µm)
- Insulation Color：Green
- Insulation Height：0.207" (5.25mm)
- Contact Length - Post：-
- Operating Temperature：-65°C ~ 150°C
- Material Flammability Rating：UL94 V-0
- Contact Finish - Post：Gold
- Mated Stacking Heights：-
- Ingress Protection：-
- Features：Pick and Place, Polarizing Key
- Current Rating (Amps)：2A
- Voltage Rating：-
Download product information
Overview

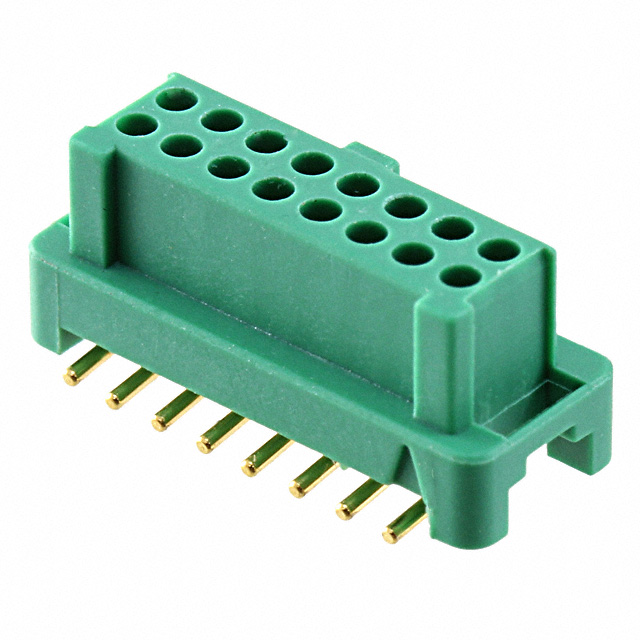

The G125-FS11605L0P is a 16-position female receptacle connector from the Harwin Gecko series. It features a 1.25 mm pitch and a dual-row configuration designed for surface mount installation. The connector supports a voltage rating of 250V and a current capacity of 2.8A. Constructed with a nylon housing and phosphor bronze contacts, it utilizes gold plating for reliable signal transmission. The operating temperature range spans from -65°C to +150°C, ensuring stability in demanding environments.
Feature Summary
- Provides a low-profile interconnect solution suitable for stacking applications
- Incorporates a spring-lock latching mechanism for secure board-to-board connection
- Features polarized keying to ensure correct mating alignment
Applications
- Board-to-board interconnects
- Stacking configurations
- Cable-to-board connections
Procurement Notes
Verify that the specific suffix matches the required reel quantity and tape specifications. Confirm the contact material and plating thickness align with the application's conductivity requirements. Ensure the surface mount footprint on the PCB corresponds exactly to the datasheet dimensions to prevent assembly errors.
Selection Notes
Select this component when a compact, high-density connector is required for vertical or stacked layouts. The 1.25 mm pitch allows for significant pin counts within a small area. Consider the spring-lock feature if vibration resistance is critical. Verify that the 2.8A current rating meets the circuit load requirements.
Part Context
This part belongs to the Gecko family of connectors, which are engineered for space-constrained electronic devices. The series emphasizes reliability through its unique locking system. The G125-FS11605L0P specifically addresses the need for robust surface-mount interfaces in modern consumer and industrial electronics.
Replacement Considerations
Compatible mating parts include G125-MH11605M4R and G125-MV11605M1P. These counterparts share the same 1.25 mm pitch and latching mechanism, ensuring mechanical compatibility within the Gecko ecosystem.
