Product Detailed Parameters
- Description：CONN RCPT 20POS 0.049 GOLD SMD
- Series：Gecko SL Reverse Fix
- Mfr：Harwin Inc.
- Package：Strip
- Connector Type：Receptacle
- Contact Type：Female Socket
- Style：Board to Board or Cable
- Number of Positions：20
- Number of Positions Loaded：All
- Pitch - Mating：0.049" (1.25mm)
- Number of Rows：2
- Row Spacing - Mating：0.049" (1.25mm)
- Mounting Type：Surface Mount
- Termination：Solder
- Fastening Type：Screw Lock
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：8.00µin (0.203µm)
- Insulation Color：Green
- Insulation Height：0.207" (5.25mm)
- Contact Length - Post：-
- Operating Temperature：-65°C ~ 150°C
- Material Flammability Rating：UL94 V-0
- Contact Finish - Post：Gold
- Mated Stacking Heights：7.33mm, 7.4mm
- Ingress Protection：-
- Features：Pick and Place, Polarizing Key
- Current Rating (Amps)：2A
- Voltage Rating：450V
Download product information
Overview

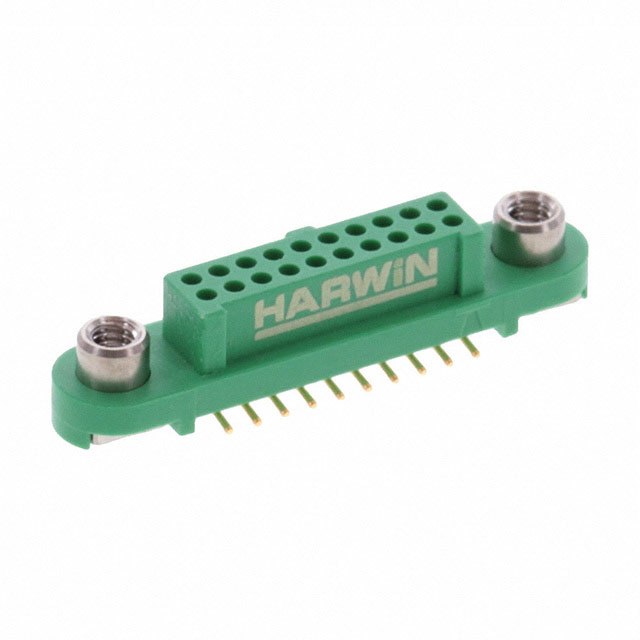

The G125-FS12005F2P is a Gecko-SL series power-to-board connector manufactured by Harwin. It features a 1.25 mm pitch with a 2x10 position configuration, totaling 20 contacts. The component utilizes female sockets and is designed for surface mount installation. The housing is green polyamide (PA), while the contacts are gold-plated phosphor bronze. It supports a current rating of 2 A and operates within a temperature range of -65°C to +150°C.
Feature Summary
- Surface mount design for automated PCB assembly
- Shrouded housing prevents misalignment during mating
- Gold-plated phosphor bronze contacts ensure reliable conductivity
Applications
- Industrial control systems
- Telecommunications equipment
- Automotive electronics
Procurement Notes
Verify the specific suffix 'P' against official datasheets to confirm packaging details, as distributor listings may vary. Ensure compatibility with mating male headers from the same Gecko-SL family. Confirm RoHS compliance status through the manufacturer's documentation before finalizing procurement orders.
Selection Notes
Select this part for applications requiring high-density vertical interconnects on limited board space. The 1.25 mm pitch allows for compact layouts compared to larger spacing options. Verify that the target PCB footprint matches the surface mount terminal specifications provided in the official mechanical drawings.
Part Context
This component belongs to the Harwin Gecko-SL series, which focuses on high-reliability power distribution. The series offers various configurations including through-hole and surface mount options. The Gecko-SL line is engineered for demanding environments, providing robust mechanical retention and electrical stability across diverse industrial sectors.
Replacement Considerations
Direct substitutes within the Gecko-SL family include G125-FS11005F2R and G125-FS12005L0P. Verify pin count and mounting style compatibility before substitution. Cross-reference mechanical dimensions to ensure fit within existing enclosure constraints.
