G125-FS12605F1P

$42.33

Description：CONN RCPT 26POS 0.049 GOLD SMD
Series：Gecko SL
Mfr：Harwin Inc.
Package：Bulk

SKU:52a421da5a58 Category: Headers, Receptacles, Female Sockets Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN RCPT 26POS 0.049 GOLD SMD
Series：Gecko SL
Mfr：Harwin Inc.
Package：Bulk
Connector Type：Receptacle
Contact Type：Female Socket
Style：Board to Board or Cable
Number of Positions：26
Number of Positions Loaded：All
Pitch - Mating：0.049" (1.25mm)
Number of Rows：2
Row Spacing - Mating：0.049" (1.25mm)
Mounting Type：Surface Mount
Termination：Solder
Fastening Type：Screw Lock
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：8.00µin (0.203µm)
Insulation Color：Green
Insulation Height：0.207" (5.25mm)
Contact Length - Post：-
Operating Temperature：-65°C ~ 105°C
Material Flammability Rating：UL94 V-0
Contact Finish - Post：Gold
Mated Stacking Heights：-
Ingress Protection：-
Features：Jackscrews, Pick and Place, Polarizing Key
Current Rating (Amps)：2A
Voltage Rating：-

Download product information

G125-FS12605F1P

Overview

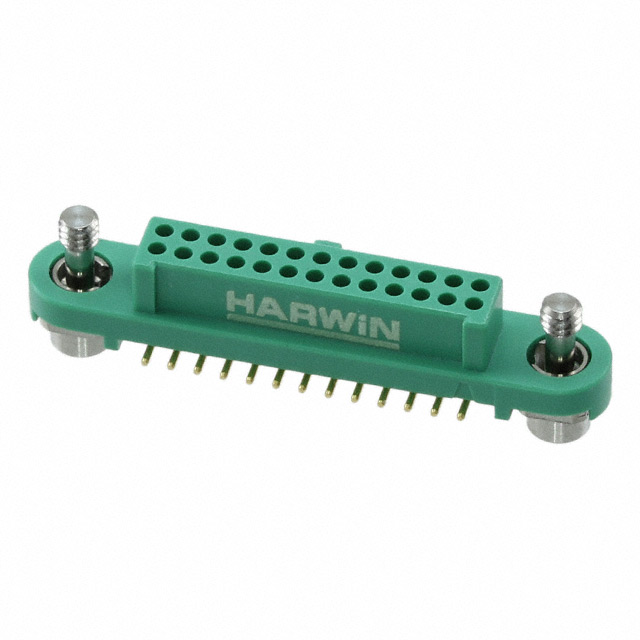

The G125-FS12605F1P is a Gecko-SL series female socket connector manufactured by Harwin. It features a 1.25 mm pitch and a 2x13 configuration, totaling 26 positions. Designed for surface mount technology, it utilizes gold-plated copper alloy contacts housed in green nylon insulation. The component supports a current rating of 2 A and voltage ratings of 250 V or 450 V. It operates within a temperature range of -65°C to +150°C.

Feature Summary

Vertical surface mount design with integrated jackscrews for secure board attachment
Gold-plated contacts on copper alloy substrate for reliable conductivity
Green nylon housing with polarizing key for correct orientation
Pick-and-place compatible packaging for automated assembly

Applications

Power distribution modules requiring secure vertical interconnects
Industrial control systems utilizing high-temperature environments
Automotive electronics assemblies demanding robust mechanical retention

Procurement Notes

Verify the specific suffix against official datasheets to confirm contact plating thickness and housing material variations. Ensure compatibility with automated pick-and-place equipment specifications. Confirm that the selected variant meets the required voltage rating of 250 V or 450 V for the target application environment.

Selection Notes

Select this component when a vertical SMT female header with mechanical locking is required. The 1.25 mm pitch suits dense board layouts. Verify thermal endurance requirements against the +150°C maximum operating limit. Consider the bulk packaging format for manual insertion or specific reflow profiles.

Part Context

This part belongs to the Harwin Gecko-SL family, designed for compact power-to-board applications. The series emphasizes high reliability through mechanical latching mechanisms. It serves as a standard interface solution in modern electronic assemblies where space efficiency and connection stability are critical priorities.
