G125-FS12605F2P

Overview

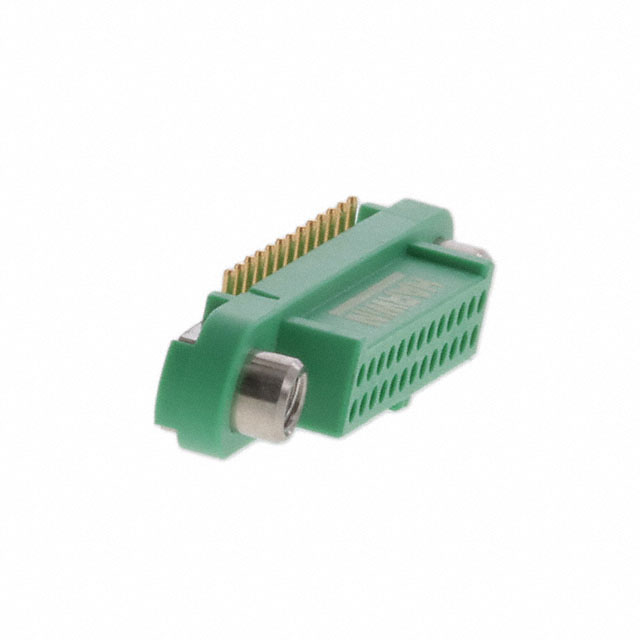

The Harwin G125-FS12605F2P is a Gecko-SL series power-to-the-board connector designed for surface mount technology. It features a female socket configuration with 26 positions arranged in a dual-row layout. The component utilizes a 1.25 mm pitch and operates at a rated current of 2 A and voltage of 250 V. Constructed with gold-plated contacts and a nylon housing, it supports a temperature range from -65 C to +150 C. This vertical SMT header includes reverse fix tabs for secure board attachment.

Feature Summary

• Vertical surface mount design with reverse fix tabs for enhanced mechanical stability
• Gold-plated copper alloy contacts ensure reliable signal transmission
• Nylon housing provides thermal resistance up to 150 C

Applications

• Industrial control systems requiring compact power distribution
• Telecommunications equipment with high-density mounting needs
• Automotive electronics utilizing surface mount headers

Procurement Notes

Verify the specific suffix '2P' against official datasheets to confirm the tape and reel packaging format. Ensure the reverse fix tab feature aligns with assembly requirements. Cross-reference RoHS compliance status directly with manufacturer documentation before procurement.

Selection Notes

Select this part for applications demanding a 1.25 mm pitch in a vertical orientation. The 26-position capacity suits moderate density layouts. Verify that the 2 A current rating meets circuit demands. Confirm compatibility with automated SMT placement processes due to the specific package style.

Part Context

This component belongs to the Harwin Gecko-SL family, which focuses on high-reliability interconnect solutions. The series emphasizes compact form factors suitable for modern electronic assemblies. It complements male counterparts within the same ecosystem for complete mating pairs.

Replacement Considerations

No public confirmed substitute part numbers are available.
