G125-FS13405L0P

Overview

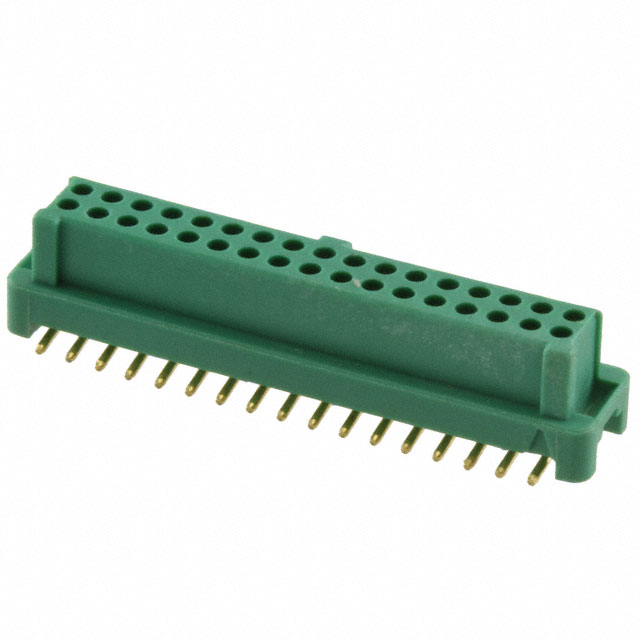

The G125-FS13405L0P is a Gecko series power-to-board connector manufactured by Harwin. It features a 1.25 mm pitch and a 2-row configuration with 34 positions. Designed for surface mount installation, the component utilizes gold-plated phosphor bronze contacts rated for 2.8 A current and 250 V voltage. The housing is constructed from nylon, supporting an operating temperature range of -65°C to +150°C.

Feature Summary

• Surface mount receptacle design for direct PCB integration
• Dual row contact arrangement providing high density connectivity
• Gold-plated phosphor bronze contacts ensuring reliable signal transmission

Applications

• Industrial control systems requiring robust board-to-board connections
• Power distribution modules within electronic assemblies
• Automotive electronics utilizing surface mount technology

Procurement Notes

Verify the specific suffix codes against official datasheets to confirm orientation and packaging details. Ensure compatibility with mating pins regarding height and locking mechanisms. Confirm RoHS compliance status through manufacturer documentation prior to final procurement decisions.

Selection Notes

Select this component when surface mount technology is required for high-density power applications. The 1.25 mm pitch allows for compact layouts while maintaining adequate spacing. Verify that the 2.8 A current rating meets the circuit requirements and that the nylon housing withstands the environmental conditions.

Part Context

This part belongs to the Harwin Gecko family, designed for secure interconnects in demanding environments. The series offers various configurations including vertical and horizontal orientations. This specific model provides a fixed surface mount solution for consistent assembly processes.

Replacement Considerations

No public confirmed substitute part numbers are available.
