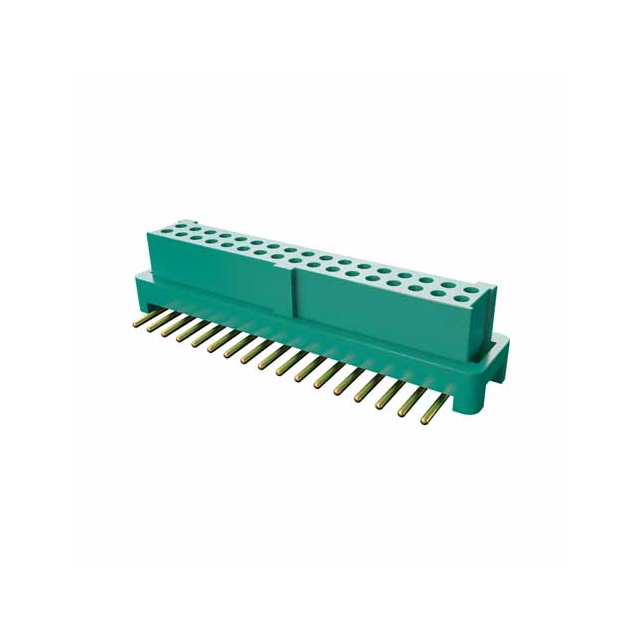

G125-FS13405L0R

$18.91

Description：CONN RCPT 34POS 0.049 GOLD SMD
Series：Gecko
Mfr：Harwin Inc.
Package：Tape & Reel (TR)

SKU:0c85711ac2ec Category: Headers, Receptacles, Female Sockets Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN RCPT 34POS 0.049 GOLD SMD
Series：Gecko
Mfr：Harwin Inc.
Package：Tape & Reel (TR)
Connector Type：Receptacle
Contact Type：Female Socket
Style：Board to Board or Cable
Number of Positions：34
Number of Positions Loaded：All
Pitch - Mating：0.049" (1.25mm)
Number of Rows：2
Row Spacing - Mating：0.049" (1.25mm)
Mounting Type：Surface Mount
Termination：Solder
Fastening Type：Latch Holder
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：8.00µin (0.203µm)
Insulation Color：Green
Insulation Height：0.207" (5.25mm)
Contact Length - Post：-
Operating Temperature：-65°C ~ 150°C
Material Flammability Rating：UL94 V-0
Contact Finish - Post：Gold
Mated Stacking Heights：-
Ingress Protection：-
Features：Pick and Place, Polarizing Key
Current Rating (Amps)：2A
Voltage Rating：-

Download product information

G125-FS13405L0R

Overview

The Harwin G125-FS13405L0R is a surface mount receptacle connector from the Gecko series, designed for board-to-board or cable applications. It features 34 positions arranged in two rows with a 1.25mm (0.049 inch) mating pitch and row spacing. The contacts are female sockets with gold plating, rated for 2A current. Constructed with green polyamide insulation (PA4T), it supports a temperature range of -65°C to 150°C and meets UL94 V-0 flammability standards.

Feature Summary

Integrated latch mechanism ensures secure mechanical retention during operation
Polarized keying design prevents incorrect mating alignment
Gold-plated circular contacts provide reliable signal transmission
Halogen-free glass-reinforced polyamide insulation supports environmental compliance

Applications

Automotive electronic systems
General industrial equipment
Board-to-board interconnects
Cable-to-board connections

Procurement Notes

Verify the specific ordering suffix against official Harwin documentation to confirm exact pin count, contact configuration, and packaging type. Ensure compatibility with automated pick-and-place processes due to the surface mount design. Confirm material composition data sheets for regulatory requirements prior to final procurement decisions.

Selection Notes

Select this component when high-density 1.25mm spacing is required for surface-mounted applications. Evaluate thermal performance within the specified -65°C to 150°C operating range. Consider the integrated latch feature for vibration resistance in automotive or industrial environments. Verify that the 2A current rating per contact aligns with system power distribution needs.

Part Context

This part belongs to the Harwin Gecko G125 family, characterized by compact 1.25mm pitch connectors. The FS designation indicates a surface mount receptacle with latching features. This series is engineered for high-reliability signal and low-power applications across diverse industries requiring robust mechanical retention.
