G125-FS15005F3P

Overview

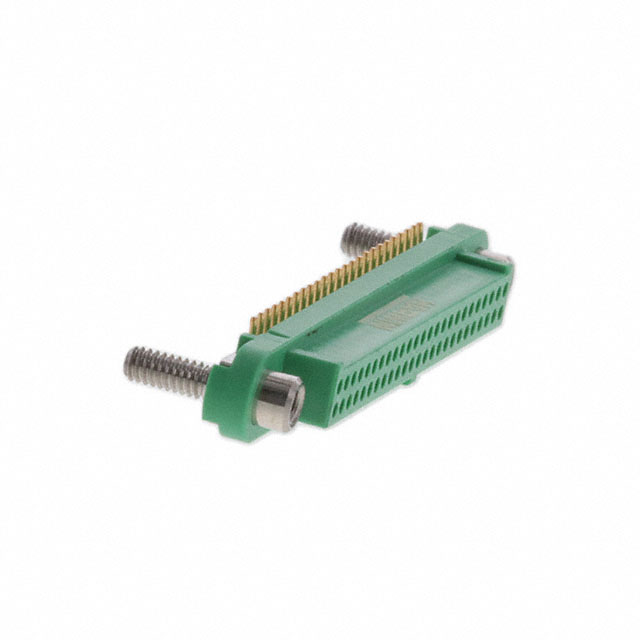

The Harwin G125-FS15005F3P is a Gecko-SL series power-to-board connector featuring a 1.25 mm pitch and 50 positions in a dual-row configuration. It utilizes female sockets with gold-plated beryllium copper contacts housed in a green nylon body. Rated for 2 A current, it supports surface-mount installation with reverse fix tape packaging. The unit operates between -65°C and +150°C, ensuring reliable vertical interconnects for compact electronic assemblies.

Feature Summary

• Provides a low-profile dual-row interconnect solution suitable for stacking applications
• Features screw-locking mechanism for secure cable mating stability
• Utilizes gold-plated beryllium copper contacts for enhanced conductivity

Applications

• Compact electronic assembly interconnects
• Board-to-board stacking connections
• Cable mating in restricted space environments

Procurement Notes

Verify the specific Gecko-SL variant designation to ensure compatibility with mating components. Confirm that the reverse fix tape packaging aligns with automated pick-and-place equipment requirements. Check RoHS compliance status against project specifications before finalizing procurement orders.

Selection Notes

Select this component when a 1.25 mm pitch vertical socket is required for high-density power distribution. Ensure the 2 A current rating meets circuit demands. Verify that the SMT mounting style and reverse fix tape format are compatible with existing manufacturing processes.

Part Context

This part belongs to the Harwin Gecko-SL family, designed for micro-miniature applications. The series emphasizes low profile and secure locking mechanisms. It serves as a specialized power connector within the broader G125 ecosystem, focusing on robust vertical board-to-board connectivity.

Replacement Considerations

G125-MS15005M2P
