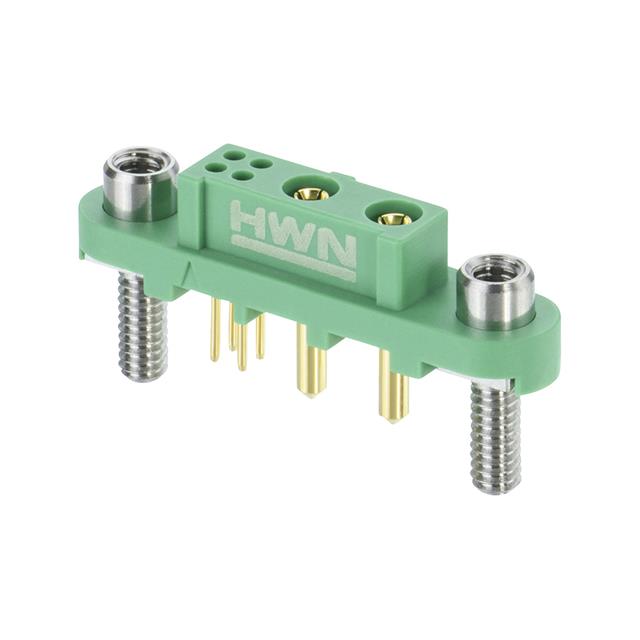

G125-FV104F3-02AB000P

$35.90

Description：CONN HDR FMALE 2PWR + 4SIGNAL
Series：Gecko MT Reverse Fix
Mfr：Harwin Inc.
Package：Strip

SKU:43ae52e01329 Category: Headers, Receptacles, Female Sockets Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN HDR FMALE 2PWR + 4SIGNAL
Series：Gecko MT Reverse Fix
Mfr：Harwin Inc.
Package：Strip
Connector Type：Receptacle
Contact Type：Female Socket
Style：Board to Board or Cable
Number of Positions：6 (4 + 2 Power)
Number of Positions Loaded：All
Pitch - Mating：0.049" (1.25mm)
Number of Rows：2
Row Spacing - Mating：0.049" (1.25mm)
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Screw Lock
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：-
Insulation Color：Green
Insulation Height：0.207" (5.25mm)
Contact Length - Post：0.118" (3.00mm)
Operating Temperature：-65°C ~ 150°C
Material Flammability Rating：UL94 V-0
Contact Finish - Post：Gold
Mated Stacking Heights：-
Ingress Protection：-
Features：Mating Flange, Mounting Flange, Polarizing Key
Current Rating (Amps)：2A, 10A
Voltage Rating：-

Download product information

G125-FV104F3-02AB000P

Overview

The Harwin G125-FV104F3-02AB000P is a mixed-layout PCB receptacle connector from the Gecko-Latch series. It features 6 positions (2 power, 4 signal) with a 1.25 mm pitch and 2.5 mm row spacing. Rated for 10 A at 250 V, it utilizes phosphor bronze contacts with gold plating. The housing is green polyamide UL 94 V-0. Designed for through-hole vertical mounting, it operates between -55 °C and +125 °C.

Feature Summary

Mixed layout configuration combining high-current power contacts with signal pins
Gecko-Latch locking mechanism ensures secure mating retention
Vertical through-hole termination for direct board integration

Applications

Industrial control systems requiring mixed signal and power connections
Consumer electronics with compact mixed-signal interfaces
Automotive electronic modules needing reliable mixed layouts

Procurement Notes

Verify the specific mixed layout pinout against system schematics to ensure correct power and signal alignment. Confirm that the 10 A current rating meets peak load requirements. Check RoHS compliance documentation for regulatory adherence. Ensure the vertical mounting style fits within the mechanical envelope constraints of the assembly.

Selection Notes

Select this part when a single connector must handle both high-current power and low-current signals in a confined space. The 1.25 mm pitch allows for higher density compared to standard power connectors. The Gecko-Latch feature provides superior retention over standard friction locks. Verify that the 250 V insulation rating matches the application voltage.

Part Context

This component belongs to the Harwin Gecko-Latch family, known for its robust latching action and mixed-layout capabilities. The G125 series offers various contact counts and configurations. This specific model integrates power and signal functions into one compact unit, simplifying assembly and reducing board space usage compared to separate connectors.
