Product Detailed Parameters
- Description：CONN RCPT 6POS 0.049 GOLD PCB
- Series：Gecko SL
- Mfr：Harwin Inc.
- Package：Bulk
- Connector Type：Receptacle
- Contact Type：Female Socket
- Style：Board to Board or Cable
- Number of Positions：6
- Number of Positions Loaded：All
- Pitch - Mating：0.049" (1.25mm)
- Number of Rows：2
- Row Spacing - Mating：0.049" (1.25mm)
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Screw Lock
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：8.00µin (0.203µm)
- Insulation Color：Green
- Insulation Height：0.207" (5.25mm)
- Contact Length - Post：-
- Operating Temperature：-65°C ~ 150°C
- Material Flammability Rating：UL94 V-0
- Contact Finish - Post：Gold
- Mated Stacking Heights：-
- Ingress Protection：-
- Features：Jackscrews, Pick and Place, Polarizing Key
- Current Rating (Amps)：2A
- Voltage Rating：-
Download product information
Overview

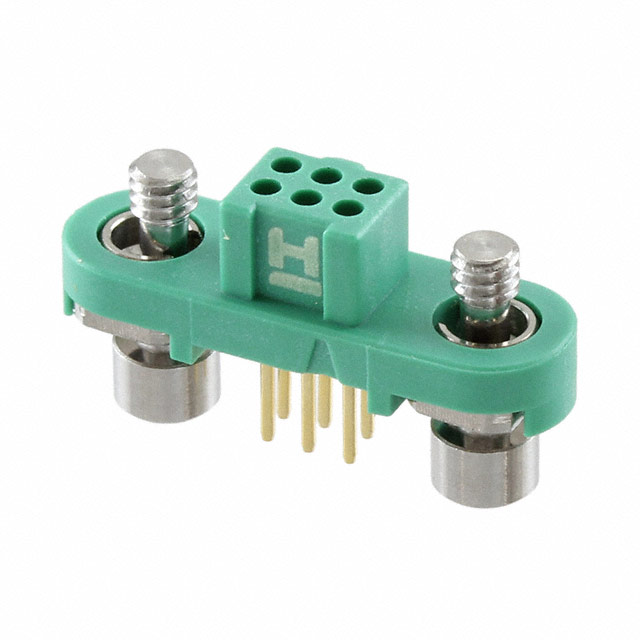

The G125-FV10605F1P is a 6-position female receptacle connector from the Harwin Gecko SL series. It features a 1.25mm (0.049 inch) pitch and is designed for through-hole mounting on printed circuit boards. The connector utilizes gold-plated phosphor bronze contacts to ensure reliable signal transmission. It incorporates a screw-lock mechanism for secure mating and includes polarity keying to prevent incorrect insertion. The housing is constructed from green polyamide material rated UL 94 V-0 for flame resistance.
Feature Summary
- Screw-lock board mount design ensures secure mechanical connection
- Gold-plated contacts provide durable electrical performance
- Integrated polarity keying prevents misalignment during assembly
Applications
- Industrial control systems requiring secure board-to-board connections
- Automotive electronics with vibration-prone environments
- Consumer appliances needing reliable signal interconnects
Procurement Notes
Verify the specific suffix F1P against official Harwin documentation to confirm exact packaging and reel specifications. Ensure compatibility with mating headers in the Gecko SL series. Check RoHS compliance status via the manufacturer's latest environmental statement before final procurement decisions.
Selection Notes
Select this component when a 6-position, 1.25mm pitch female connector with screw-lock retention is required. It is suitable for applications demanding high reliability and secure mounting. Consider thermal ratings and current capacity relative to the specific application load requirements.
Part Context
This part belongs to the Harwin Gecko SL family of micro-miniature connectors. The series is characterized by its small form factor and robust locking mechanisms. It is widely used in compact electronic designs where space efficiency and connection security are critical priorities.
Replacement Considerations
No direct public substitute part numbers are confirmed for this specific model. Evaluate compatible components within the same Gecko SL series that match the 6-position count and screw-lock feature.
