G125-FV10605F1R

Description：CONN RECPT VERT PCB 6POS
Series：Gecko SL
Mfr：Harwin Inc.
Package：Tape & Reel (TR)

SKU:3604d20749b5 Category: Headers, Receptacles, Female Sockets Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN RECPT VERT PCB 6POS
Series：Gecko SL
Mfr：Harwin Inc.
Package：Tape & Reel (TR)
Connector Type：Receptacle
Contact Type：Female Socket
Style：Board to Board or Cable
Number of Positions：6
Number of Positions Loaded：All
Pitch - Mating：0.049" (1.25mm)
Number of Rows：2
Row Spacing - Mating：0.049" (1.25mm)
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Screw Lock
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：8.00µin (0.203µm)
Insulation Color：Green
Insulation Height：0.207" (5.25mm)
Contact Length - Post：0.118" (3.00mm)
Operating Temperature：-65°C ~ 150°C
Material Flammability Rating：UL94 V-0
Contact Finish - Post：Gold
Mated Stacking Heights：7.25mm, 7.33mm
Ingress Protection：-
Features：Jackscrews, Pick and Place, Polarizing Key
Current Rating (Amps)：2A
Voltage Rating：450V

Download product information

G125-FV10605F1R

Overview

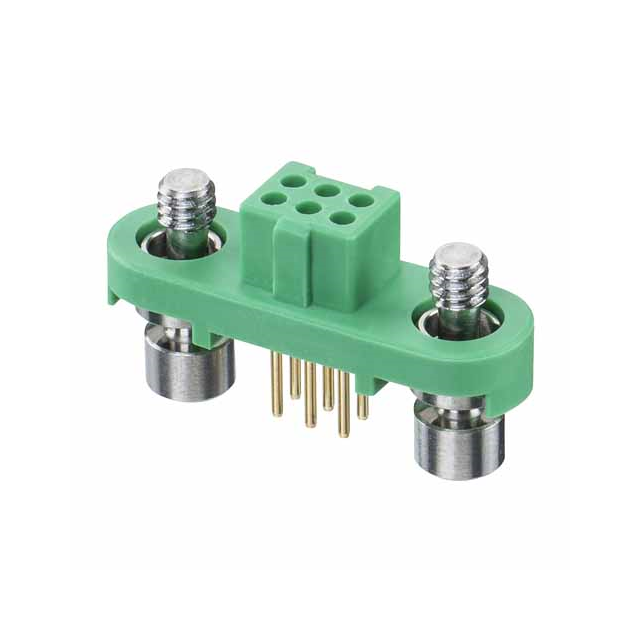

The Harwin G125-FV10605F1R is a Gecko-SL series female vertical through-hole connector with a 1.25 mm pitch and 6 positions in a 2-row configuration. It features gold-plated phosphor bronze contacts, a green polyamide housing, and a jack-screw locking mechanism. Rated for 2 A current and 450 V voltage, it operates between -65°C and +150°C.

Feature Summary

Jack-screw board mount locking system
Polarized keying design
Gold-plated contact surfaces

Applications

Industrial control systems
Automotive electronics
Test and measurement equipment

Procurement Notes

Verify the specific suffix against official datasheets to confirm orientation and packaging. Confirm RoHS compliance status and lead times directly with authorized distributors before procurement.

Selection Notes

Select this component for applications requiring secure mechanical retention via screw-locking. Ensure mating connectors match the 1.25 mm pitch and polarized keying requirements of the Gecko-SL family.

Part Context

This part belongs to the Harwin Gecko-SL line, designed for high-reliability signal connections. The series emphasizes robust mechanical locking and compact form factors suitable for dense PCB layouts.
