G125-FV10605F2P

Overview

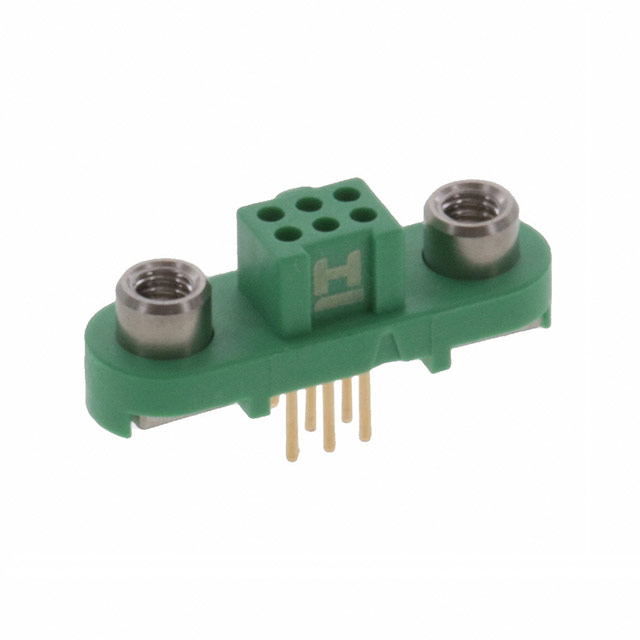

The G125-FV10605F2P is a 6-position PCB receptacle from the Gecko SL Reverse Fix series by Harwin Inc. It features a 1.25mm pitch with two rows of contacts designed for through-hole mounting. The connector utilizes gold-plated copper alloy contacts and a green polyamide (PA4T) insulator rated UL94 V-0. Electrical specifications include a 2A current rating and 450V voltage rating, operating within a temperature range of -65°C to +150°C.

Feature Summary

• Reverse fix design ensures secure board retention
• Jackscrew locking mechanism provides mechanical stability
• Halogen-free PA4T insulation material meets environmental standards

Applications

• Power distribution modules
• Industrial control systems
• Telecommunications equipment

Procurement Notes

Verify component authenticity against official Harwin documentation. Confirm that the specific suffix matches the required reverse fix configuration. Ensure storage conditions maintain integrity of the polyamide housing. Cross-reference pinout diagrams with target PCB layout before finalizing orders.

Selection Notes

Select this part when a low-profile, high-reliability connection is required in space-constrained environments. The reverse fix feature distinguishes it from standard headers. Verify compatibility with mating plugs using the same jack screw system. Consider thermal management requirements given the 150°C maximum operating limit.

Part Context

This component belongs to the G125 Gecko SL family, known for micro-miniature interconnect solutions. The series emphasizes robust mechanical locking and compact form factors suitable for dense circuit board layouts. It complements other G125 series products like housings and male pins.

Replacement Considerations

G125-FV10605F2R serves as an alternative reel-packaged version of the same technical specification.
