G125-FV10605F3R

Overview

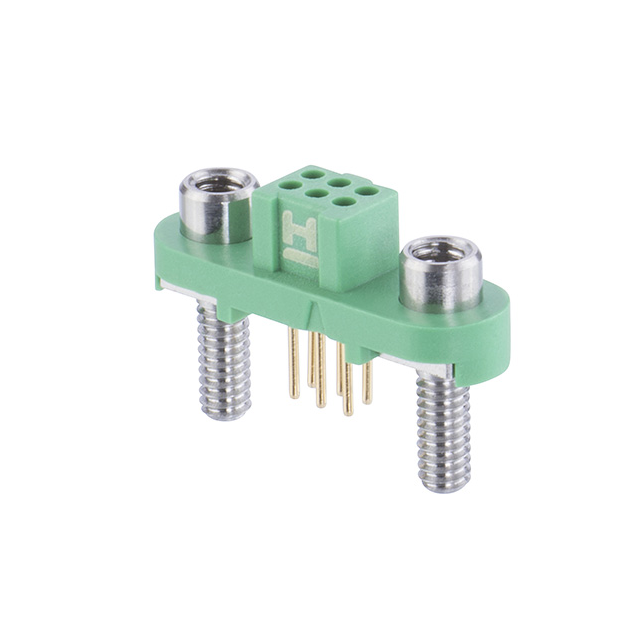

The G125-FV10605F3R is a PCB receptacle from the Harwin Gecko SL series, designed for wire-to-board and board-to-board applications. It features a 1.25 mm pitch with 6 contacts arranged in a dual in-line (DIL) configuration across two rows. The connector utilizes through-hole straight termination and incorporates a Screw-Lok reverse fix mounting style for secure installation. Rated for 2 A current and 450 V voltage, it operates within a temperature range of -65°C to +150°C.

Feature Summary

• Screw-Lok Reverse Fix mounting mechanism ensures secure board attachment
• Dual in-line (DIL) contact arrangement for compact routing
• High-temperature operation capability up to 150°C

Applications

• Wire-to-board interconnections
• Board-to-board signal transmission
• Industrial control systems requiring high reliability

Procurement Notes

Verify that the specific suffix '3R' corresponds to the tape-and-reel packaging format required for automated assembly processes. Confirm that the Screw-Lok reverse fix orientation aligns with the mechanical design constraints of the target application. Ensure compatibility with the mating pin headers within the Gecko SL ecosystem before finalizing procurement orders.

Selection Notes

Select this component when a robust, screw-secured connection is necessary for 6-position signals at 1.25 mm pitch. The reverse fix feature is critical for applications where standard mounting orientations are obstructed or require specific strain relief configurations. Consider the 2 A rating and 450 V insulation capabilities against the electrical requirements of the circuit design.

Part Context

This part belongs to the Harwin Gecko SL family, which specializes in micro-miniature connectors with a 1.25 mm pitch. The series is characterized by its high-density layout options and reliable locking mechanisms, making it suitable for space-constrained electronic assemblies requiring durable connections.

Replacement Considerations

Compatible mating parts include G125-MH10605M4R and G125-MV10605M2P. Verify that substitute components maintain the same 1.25 mm pitch, 6-position count, and Screw-Lok reverse fix interface specifications.
