Product Detailed Parameters
- Description：CONN F-HDR 2PWR 8SIG PCB VERT
- Series：Gecko MT
- Mfr：Harwin Inc.
- Package：Strip
- Connector Type：Receptacle
- Contact Type：Female Socket
- Style：Board to Board or Cable
- Number of Positions：10 (8 + 2 Power)
- Number of Positions Loaded：All
- Pitch - Mating：0.049" (1.25mm)
- Number of Rows：2
- Row Spacing - Mating：0.049" (1.25mm)
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Screw Lock
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：-
- Insulation Color：Green
- Insulation Height：0.207" (5.25mm)
- Contact Length - Post：0.118" (3.00mm)
- Operating Temperature：-65°C ~ 150°C
- Material Flammability Rating：UL94 V-0
- Contact Finish - Post：Gold
- Mated Stacking Heights：-
- Ingress Protection：-
- Features：Jackscrews, Mating Flange, Pick and Place, Polarizing Key
- Current Rating (Amps)：2A, 10A
- Voltage Rating：450V
Download product information
Overview

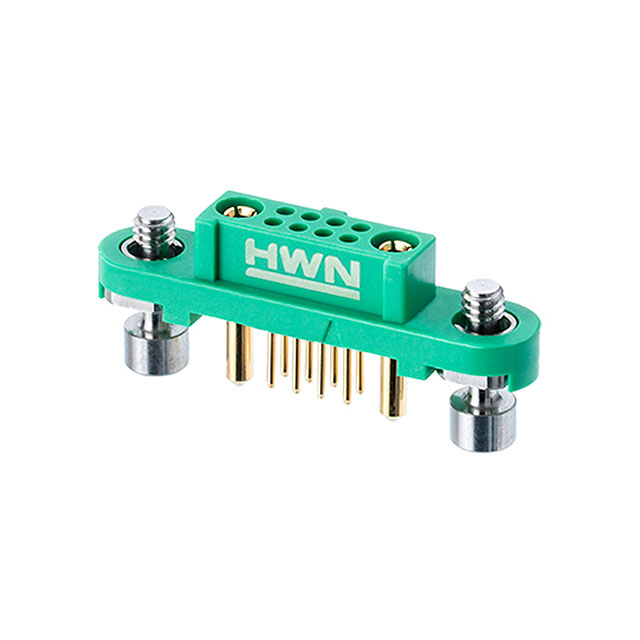

The G125-FV10805F1-1AB1ABP is a Gecko-MT series female receptacle connector designed for vertical through-hole PCB mounting. It features a 10-position arrangement comprising eight signal contacts and two power contacts. The connector utilizes gold plating on the contact surfaces to ensure reliable conductivity. The power contacts are specified with a 3.6mm termination length, while the overall pitch is 1.25mm (0.049 inches). This configuration supports mixed signal and power transmission in compact board-to-board or cable applications.
Feature Summary
- Vertical through-hole mounting style for direct PCB integration
- Mixed contact arrangement combining signal and power positions
- Gold-plated contact surfaces for enhanced conductivity
Applications
- Board-to-board interconnects requiring mixed signal and power
- Cable assemblies connecting to PCB receptacles
- Compact electronic modules needing vertical orientation
Procurement Notes
Verify the specific ordering suffix against the manufacturer's current datasheet to confirm contact arrangement and termination specifications. Ensure the required voltage rating of 450V aligns with system requirements. Confirm that the through-hole footprint matches the target PCB design before procurement.
Selection Notes
Select this component when a vertical orientation is required for mixed signal and power connections. The 1.25mm pitch allows for dense packing within limited board space. Consider the 3.6mm power contact termination length to ensure adequate solder joint integrity during assembly.
Part Context
This part belongs to Harwin's Gecko-MT series, which focuses on high-density connectivity solutions. The series offers various configurations for different mounting styles and contact arrangements. The G125-F variant specifically denotes the female receptacle form factor within this product line.
Replacement Considerations
Check for compatible parts within the same Gecko-MT family that share the 1.25mm pitch and vertical mounting style. Verify that any substitute maintains the 10-position layout with identical signal and power contact distribution.
