G125-FV10805F1-2AB2ABP

Overview

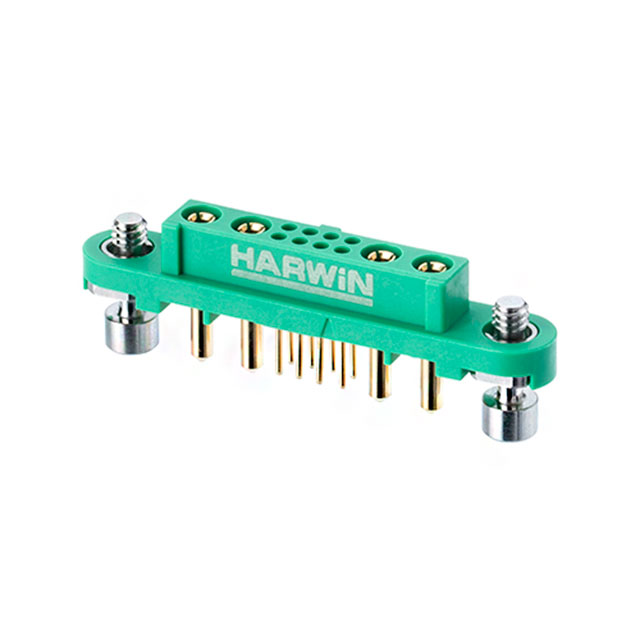

The Harwin G125-FV10805F1-2AB2ABP is a Gecko-SL series power-to-board connector featuring a 12-position, two-row female socket configuration. It utilizes a 1.25 mm pitch and supports through-hole solder pin termination for secure PCB mounting. The component is rated for 2 A current and 450 V voltage, with gold-plated copper alloy contacts housed in a black or green nylon shell. Operating temperatures range from -65 C to +150 C, ensuring reliability in demanding electronic assemblies.

Feature Summary

• Incorporates beryllium copper spring contacts with crimped retention for consistent mating force.
• Features floating hex socket design to accommodate misalignment during assembly.
• Includes polarizing key and pick-and-place compatibility for automated manufacturing.

Applications

• High-density power distribution in industrial control systems
• Server and storage backplane interconnects
• Automotive electronics requiring robust thermal performance

Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm contact configuration and housing color. Ensure that the selected variant matches the required signal and power contact arrangement. Cross-reference the RoHS and REACH compliance status directly with the latest product documentation before procurement to meet regulatory standards.

Selection Notes

Select this connector when a compact, high-reliability power interface is required for through-hole applications. The floating socket design aids in alignment tolerance management. Verify that the 1.25 mm pitch and 2-row layout fit the available PCB space. Confirm that the 450 V rating and 2 A current capacity align with the system's electrical requirements and thermal environment.

Part Context

This component belongs to the Harwin Gecko-SL family of power-to-board connectors. The series is designed for high-density applications where reliable power delivery is critical. The G125-FV10805F1-2AB2ABP specifically denotes a 12-position receptacle with a defined power contact configuration, distinguishing it from other variants in the same pitch series.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult the manufacturer's official cross-reference guide for compatible alternatives within the Gecko-SL series or equivalent pitch connectors.

FAQ

What is the mating force specification for this connector?

The connector employs beryllium copper springs with crimped contact retention designed for approximately 4–6 lbf mating force.

Does this connector support automated assembly?

Yes, the component features pick-and-place compatibility and a polarizing key to facilitate automated manufacturing processes.
