Product Detailed Parameters

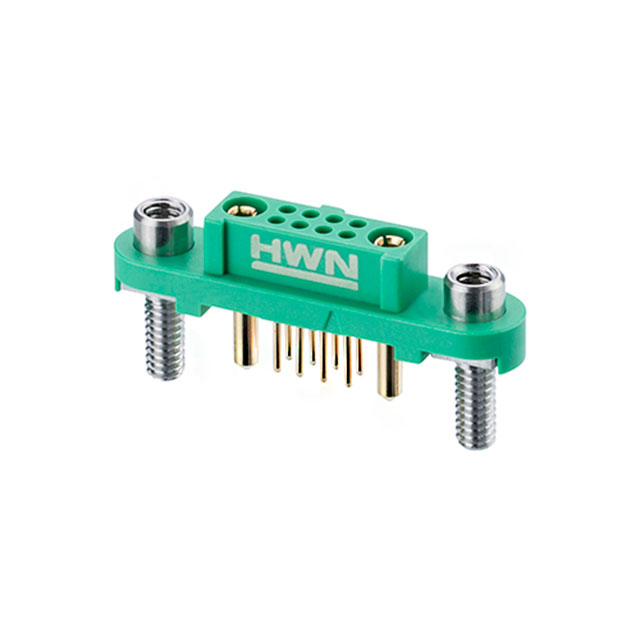

- Description：CONN F-HDR 2PWR 8SIG PCB VERT
- Series：Gecko MT Reverse Fix
- Mfr：Harwin Inc.
- Package：Strip
- Connector Type：Receptacle
- Contact Type：Female Socket
- Style：Board to Board or Cable
- Number of Positions：10 (8 + 2 Power)
- Number of Positions Loaded：All
- Pitch - Mating：0.049" (1.25mm)
- Number of Rows：2
- Row Spacing - Mating：0.049" (1.25mm)
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Screw Lock
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：-
- Insulation Color：Green
- Insulation Height：0.207" (5.25mm)
- Contact Length - Post：0.118" (3.00mm)
- Operating Temperature：-65°C ~ 150°C
- Material Flammability Rating：UL94 V-0
- Contact Finish - Post：Gold
- Mated Stacking Heights：-
- Ingress Protection：-
- Features：Mating Flange, Mounting Flange, Pick and Place, Polarizing Key
- Current Rating (Amps)：2A, 10A
- Voltage Rating：450V
Download product information
Overview
The Harwin G125-FV10805F3-1AB1ABP is a high-density connector component designed for demanding environments. It belongs to the G125 series, which provides robust interconnection solutions. The specific model designation indicates precise pin configuration and contact material specifications required for reliable signal transmission in critical systems.
Feature Summary
- Engineered for high-density interconnection requirements
- Constructed with materials suitable for harsh environmental conditions
- Designed to ensure reliable signal integrity in mission-critical applications
Applications
- Spacecraft communication systems
- Satellite payload interconnects
- Avionics data buses
Procurement Notes
Verify the complete part number against official Harwin documentation to confirm exact pin count, contact plating, and housing color. Ensure compatibility with mating connectors and cable assemblies. Check for any specific handling instructions related to ESD sensitivity or mechanical retention features specified in the datasheet.
Selection Notes
Select this component based on space constraints and density needs. Confirm environmental ratings such as temperature range and vibration resistance match the application profile. Validate that the interface type aligns with system architecture requirements before finalizing the design.
Part Context
This part is part of the G125 family, known for compact form factors. It serves as a key element in modern electronic systems requiring small footprint connectors. The series supports various configurations to meet diverse industry standards.
Replacement Considerations
Consult Harwin's official substitution guide for direct equivalents. Verify pinout compatibility and mechanical dimensions before swapping. Generic substitutes may not meet the same environmental or performance standards.
