Product Detailed Parameters
- Description：CONN HDR FMALE 6PWR + 8SIGNAL
- Series：Gecko MT
- Mfr：Harwin Inc.
- Package：Strip
- Connector Type：Receptacle
- Contact Type：Female Socket
- Style：Board to Board or Cable
- Number of Positions：14 (8 + 6 Power)
- Number of Positions Loaded：All
- Pitch - Mating：0.049" (1.25mm)
- Number of Rows：2
- Row Spacing - Mating：0.049" (1.25mm)
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Screw Lock
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：-
- Insulation Color：Green
- Insulation Height：0.207" (5.25mm)
- Contact Length - Post：0.118" (3.00mm)
- Operating Temperature：-65°C ~ 150°C
- Material Flammability Rating：UL94 V-0
- Contact Finish - Post：Gold
- Mated Stacking Heights：-
- Ingress Protection：-
- Features：Jackscrews, Mating Flange, Polarizing Key
- Current Rating (Amps)：2A, 10A
- Voltage Rating：-
Download product information
Overview

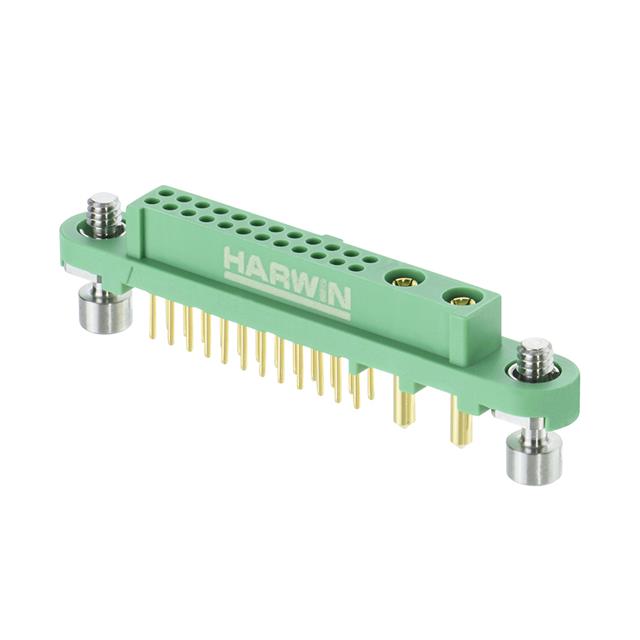

The G125-FV108F1-06AB000P is a PCB receptacle from the Harwin Gecko-MT series, designed for board-to-board interconnections. It features a 1.25 mm pitch and provides 14 contacts in a through-hole straight configuration. The component utilizes gold-plated phosphor bronze contacts housed in green polyamide insulation, rated for 2 A current and 250 V voltage. Operating temperatures range from -65°C to +150°C with UL 94 V-0 flammability classification.
Feature Summary
- Innovative jack screw locking mechanism ensures secure mating and prevents accidental disconnection.
- Internally mounted design compatible with standard Datamate J-Tek and Power/Coax connectors.
- High-density 1.25 mm pitch allows for compact circuit board layouts.
Applications
- Board-to-board interconnects in industrial control systems
- Data acquisition modules requiring reliable signal transmission
- Medical instrumentation equipment
Procurement Notes
Verify the specific suffix codes against the official datasheet to confirm contact plating thickness and housing material variations. Ensure compatibility with existing mating headers regarding row spacing and locking style before finalizing procurement orders.
Selection Notes
Select this component when high-density connections are required alongside robust mechanical locking. The straight through-hole format suits vertical mounting needs. Confirm that the 14-position count aligns with circuit requirements and that the 1.25 mm pitch matches adjacent components on the target PCB layout.
Part Context
This part belongs to the Gecko-MT series, an evolution of the popular Gecko connector family. It integrates the proven reliability of the original design with enhanced mounting stability. The series targets applications demanding high vibration resistance and precise alignment in space-constrained environments.
Replacement Considerations
Direct substitutes within the same series include G125-FV108F1 variants with different suffixes indicating altered packaging or minor material specifications. Cross-series replacement requires verifying mating interface compatibility and electrical ratings.
