G125-FV11005F2P

Overview

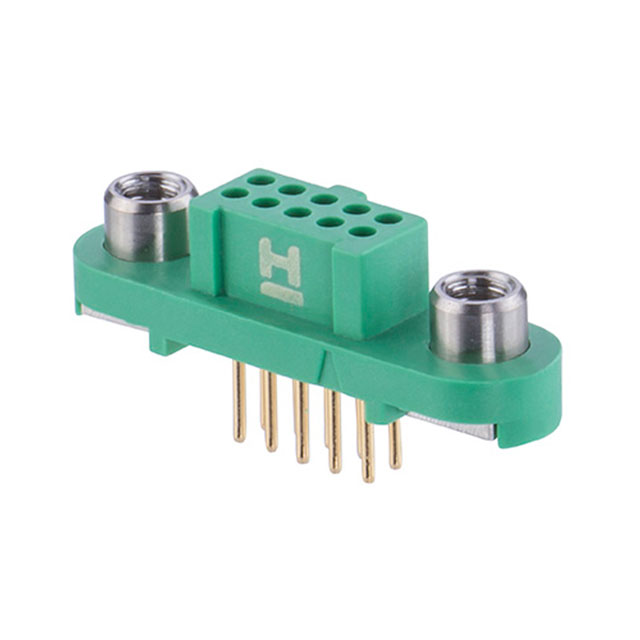

The Harwin G125-FV11005F2P is a Gecko-SL series PCB receptacle connector designed for through-hole mounting. It features a 1.25 mm pitch with two rows of five positions, totaling ten contacts. The connector utilizes female socket terminals with gold plating to ensure reliable signal transmission. Rated for 2A current and 450V voltage, it operates within a temperature range of -65°C to +150°C. The housing is constructed from black nylon, providing mechanical stability and insulation.

Feature Summary

• Gecko-SL screw-locking mechanism ensures secure mating connections
• Gold-plated phosphor bronze contacts provide corrosion resistance
• Vertical through-hole termination supports automated assembly

Applications

• Industrial control systems requiring robust interconnects
• Power distribution modules in electronic equipment
• Automotive sensor interface circuits

Procurement Notes

Verify the specific suffix 'F2P' against the manufacturer datasheet to confirm tape-and-reel packaging orientation and reverse fix configuration. Ensure compatibility with corresponding male headers before procurement. Request official RoHS compliance documentation to meet environmental regulations. Confirm that the specified contact count matches the design requirements for the target application circuit.

Selection Notes

Select this component when a vertical, screw-locked female header is required for high-vibration environments. The 1.25 mm pitch allows for dense board layouts while maintaining adequate spacing. Consider the 2A current rating for power lines or signal integrity needs. Verify that the through-hole footprint aligns with the PCB manufacturing capabilities and available clearance height constraints.

Part Context

This part belongs to the Harwin Gecko family, known for its screw-locking feature that prevents accidental disconnection. The F-series designation indicates a female receptacle intended for PCB mounting. It pairs with male counterparts like the G125-MV series to form complete interconnect solutions. The standard numbering system encodes row count, position, and termination style.

Replacement Considerations

• G125-FV11005F2R
