Product Detailed Parameters
- Description：CONN RCPT 12POS 0.049 GOLD PCB
- Series：Gecko SL
- Mfr：Harwin Inc.
- Package：Bulk
- Connector Type：Receptacle
- Contact Type：Female Socket
- Style：Board to Board or Cable
- Number of Positions：12
- Number of Positions Loaded：All
- Pitch - Mating：0.049" (1.25mm)
- Number of Rows：2
- Row Spacing - Mating：0.049" (1.25mm)
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Screw Lock
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：8.00µin (0.203µm)
- Insulation Color：Green
- Insulation Height：0.207" (5.25mm)
- Contact Length - Post：-
- Operating Temperature：-65°C ~ 150°C
- Material Flammability Rating：UL94 V-0
- Contact Finish - Post：Gold
- Mated Stacking Heights：-
- Ingress Protection：-
- Features：Jackscrews, Pick and Place, Polarizing Key
- Current Rating (Amps)：2A
- Voltage Rating：-
Download product information
Overview

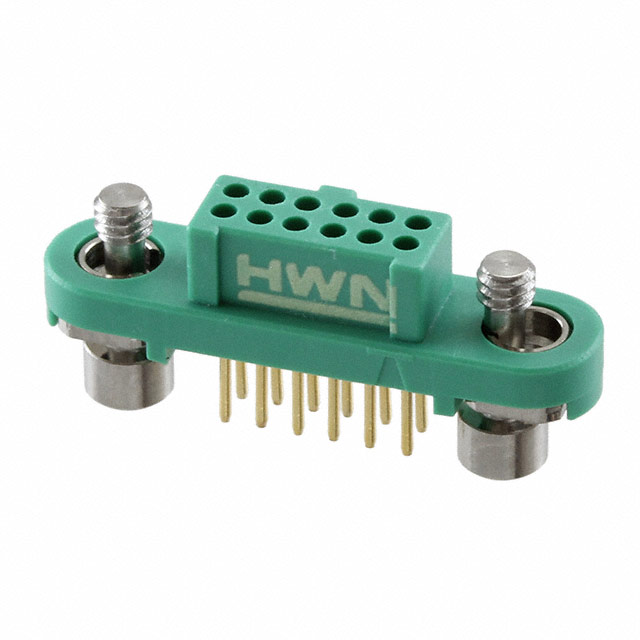

The G125-FV11205F1P is a 12-position female receptacle connector from the Harwin Gecko-SL series, designed for through-hole PCB mounting. It features a 1.25 mm (0.049 inch) contact pitch and a 2x6 pinout layout. The contacts are gold-plated phosphor bronze, housed in a polyamide body. This component serves as a vertical socket interface within the Gecko-SL system.
Feature Summary
- Vertical through-hole mounting configuration for direct PCB integration
- Gold-plated contacts ensure reliable signal transmission and corrosion resistance
- Polyamide housing provides structural stability and insulation
Applications
- Industrial control panel interconnections
- Embedded system board-to-board interfaces
- Consumer electronics internal wiring
Procurement Notes
Verify the specific suffix 'P' against the official datasheet to confirm packaging or plating variations. Ensure compatibility with mating male pins of the same 1.25mm pitch series. Confirm RoHS compliance status via the manufacturer's latest documentation before finalizing procurement specifications.
Selection Notes
Select this part when a vertical, 12-position female header is required for space-constrained designs. The 1.25mm pitch allows for high density compared to larger spacing connectors. Verify that the through-hole footprint matches the target PCB design constraints and soldering capabilities.
Part Context
This component belongs to the Gecko-SL family, which offers compact connectivity solutions. It complements other series members like cable assemblies and latching headers, providing a standardized interface option for engineers designing modular electronic systems requiring reliable vertical connections.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided data. Cross-referencing requires matching 1.25mm pitch, 12-position female, through-hole specifications from alternative manufacturers.
