G125-FV11205F2P

Overview

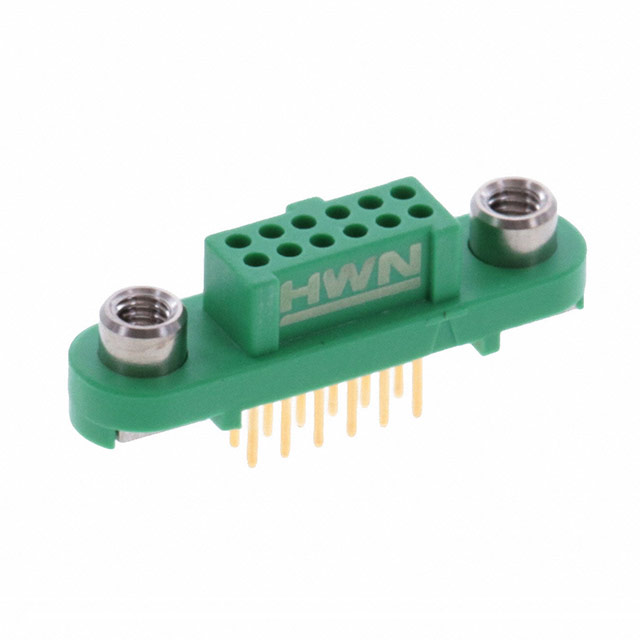

The Harwin G125-FV11205F2P is a Gecko-SL series power-to-the-board connector featuring a 1.25 mm pitch and a 2x6 vertical configuration with 12 positions. It utilizes phosphor bronze contacts with gold plating and a polyamide (PA) housing rated UL 94 V-0. The component supports a current rating of 2 A and voltage ratings of 250 V or 450 V, operating within a temperature range of -65°C to +150°C. It employs a reverse fix locking mechanism for secure board attachment.

Feature Summary

• Reverse fix locking mechanism ensures secure board attachment
• Gecko-SL series design for high-density power applications
• Gold-plated phosphor bronze contacts for reliable conductivity

Applications

• Power distribution in compact electronic assemblies
• Industrial control systems requiring secure vertical connections
• Automotive electronics with space constraints

Procurement Notes

Verify the specific reverse fix locking variant against project requirements. Confirm RoHS compliance status through official manufacturer documentation. Ensure compatibility with mating connectors in the Gecko-SL family. Check for any recent product change notices affecting specifications.

Selection Notes

Select this component for applications requiring a vertical 12-position power connection with a 1.25 mm pitch. The reverse fix feature provides enhanced mechanical stability compared to standard headers. Consider the 2 A current rating and 150°C maximum operating temperature for thermal management planning.

Part Context

This part belongs to the Harwin Gecko-SL family, designed for high-reliability power interconnects. The series offers various configurations including horizontal and vertical options with different pin counts. The G125-FV11205F2P specifically addresses needs for vertical mounting with a unique reverse fix locking system.

Replacement Considerations

No public confirmed substitute part numbers are available.
