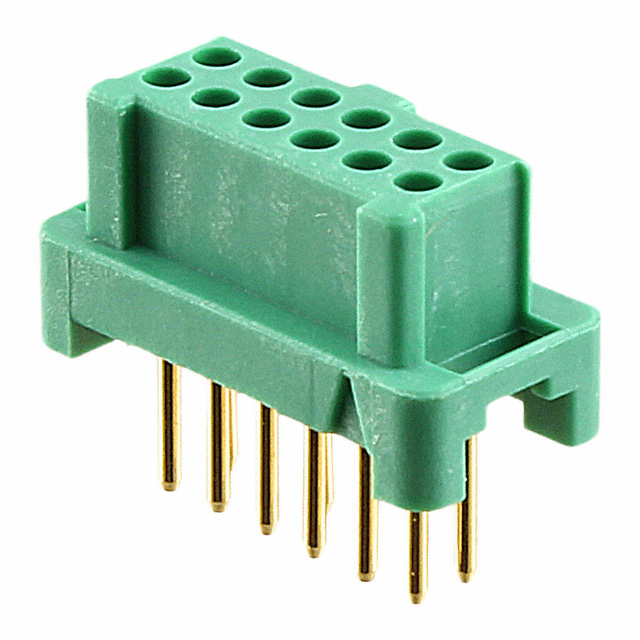

G125-FV11205L0P

$11.57

Description：CONN RCPT 12POS 0.049 GOLD PCB
Series：Gecko
Mfr：Harwin Inc.
Package：Strip

SKU:be22be123940 Category: Headers, Receptacles, Female Sockets Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN RCPT 12POS 0.049 GOLD PCB
Series：Gecko
Mfr：Harwin Inc.
Package：Strip
Connector Type：Receptacle
Contact Type：Female Socket
Style：Board to Board or Cable
Number of Positions：12
Number of Positions Loaded：All
Pitch - Mating：0.049" (1.25mm)
Number of Rows：2
Row Spacing - Mating：0.049" (1.25mm)
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Latch Holder
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：8.00µin (0.203µm)
Insulation Color：Green
Insulation Height：0.207" (5.25mm)
Contact Length - Post：0.118" (3.00mm)
Operating Temperature：-65°C ~ 150°C
Material Flammability Rating：UL94 V-0
Contact Finish - Post：Gold
Mated Stacking Heights：-
Ingress Protection：-
Features：Pick and Place, Polarizing Key
Current Rating (Amps)：2A
Voltage Rating：-

Download product information

G125-FV11205L0P

Overview

The G125-FV11205L0P is a Gecko-SL series power-to-board connector manufactured by Harwin. It features a 12-position female socket configuration arranged in two rows with a 1.25 mm pitch. Designed for vertical surface-mount or through-hole termination, the unit utilizes gold-plated phosphor bronze contacts housed in green polyamide insulation. The component supports a rated current of 2 A and withstands voltages up to 250 V. It operates within a temperature range of -65 °C to +150 °C and offers an insulation resistance of 10 GOhms.

Feature Summary

Vertical orientation design facilitates compact board stacking.
Gold-plated contacts ensure reliable signal integrity and corrosion resistance.
Polyamide housing provides high thermal stability and UL94 V-0 flammability rating.

Applications

Automotive electronic control units
Industrial power distribution systems
General purpose PCB interconnections

Procurement Notes

Verify the specific termination style against your assembly requirements, as datasheets may list both SMT and Through Hole variants under similar part numbers. Confirm RoHS compliance status directly with the manufacturer before finalizing procurement orders. Ensure the selected packaging matches your automated placement equipment capabilities.

Selection Notes

Select this component when a low-profile vertical connection is required for power delivery. The 1.25 mm pitch allows for dense pin counts in limited space. Verify that the mating header or cable assembly matches the 2x6 female socket configuration and compatible contact plating specifications.

Part Context

This connector belongs to the Harwin Gecko-SL family, engineered for high-reliability applications. The series emphasizes robust mechanical locking and consistent electrical performance across automotive and industrial sectors. The G125 designation indicates the specific 1.25 mm pitch geometry within the broader product line.
