G125-FV11605F1P

$30.10

Description：CONN RCPT 16POS 0.049 GOLD PCB
Series：Gecko SL
Mfr：Harwin Inc.
Package：Strip

SKU:8c59c4d22c94 Category: Headers, Receptacles, Female Sockets Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN RCPT 16POS 0.049 GOLD PCB
Series：Gecko SL
Mfr：Harwin Inc.
Package：Strip
Connector Type：Receptacle
Contact Type：Female Socket
Style：Board to Board or Cable
Number of Positions：16
Number of Positions Loaded：All
Pitch - Mating：0.049" (1.25mm)
Number of Rows：2
Row Spacing - Mating：0.049" (1.25mm)
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Screw Lock
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：8.00µin (0.203µm)
Insulation Color：Green
Insulation Height：0.207" (5.25mm)
Contact Length - Post：-
Operating Temperature：-65°C ~ 150°C
Material Flammability Rating：UL94 V-0
Contact Finish - Post：Gold
Mated Stacking Heights：-
Ingress Protection：-
Features：Jackscrews, Pick and Place, Polarizing Key
Current Rating (Amps)：2A
Voltage Rating：-

Download product information

G125-FV11605F1P

Overview

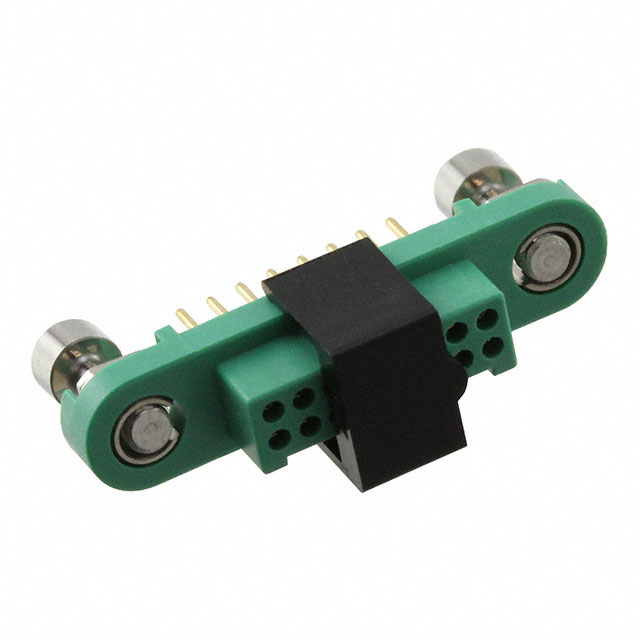

The Harwin G125-FV11605F1P is a Gecko-SL series power-to-board connector housing designed for through-hole mounting. It features a 16-position, two-row female socket configuration with a 1.25 mm pitch and 1.25 mm row spacing. Rated for 2 A current and 250 V voltage, the unit utilizes beryllium copper contacts with gold plating. The green nylon insulation supports an operating temperature range of -65 °C to +150 °C, providing high reliability for demanding electronic applications.
