G125-FV11605F1R

Overview

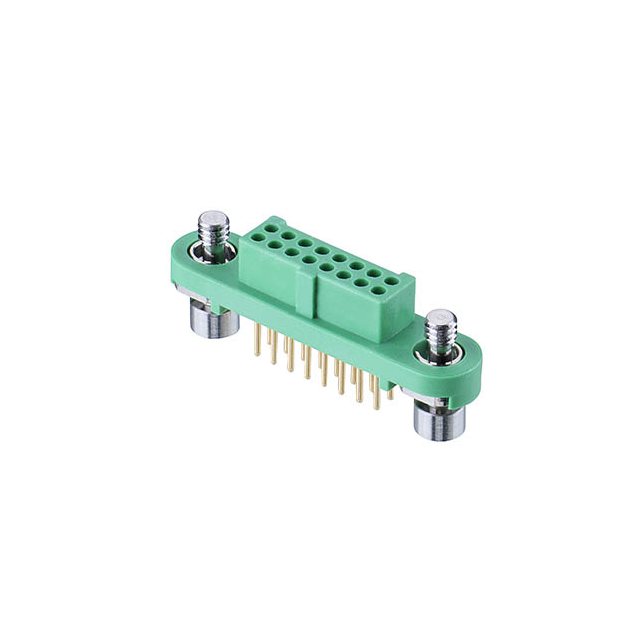

The G125-FV11605F1R is a Gecko-SL series power-to-board connector housing manufactured by Harwin. It features a 16-position female socket configuration with a 1.25 mm pitch arranged in two rows. The component utilizes beryllium copper contacts with gold plating and a nylon insulation body rated for operation between -65°C and +150°C. Electrical ratings include 2 A current and 250 V voltage, with an insulation resistance of 10 GOhms. Designed for through-hole mounting via solder pins, this straight-installation housing provides secure interconnect solutions.

Feature Summary

• Provides a low-profile dual-row interconnect solution suitable for stacking applications
• Features a jackscrew locking mechanism for secure board attachment
• Utilizes gold-plated beryllium copper contacts for reliable signal transmission

Applications

• Power to the Board connections
• Board-to-Board interconnects
• Cable-to-Board assemblies

Procurement Notes

Verify that the specific suffix 'R' corresponds to the required tape-and-reel packaging format rather than bulk or tray configurations. Confirm that the green nylon housing material meets environmental compliance requirements such as RoHS and REACH standards for the target application. Ensure the through-hole solder pin length aligns with the PCB thickness specifications to guarantee proper mechanical stability during assembly.

Selection Notes

Select this part when a vertical, non-latching female housing is required for the Gecko-SL system. The 1.25 mm pitch allows for dense circuit board layouts while maintaining adequate spacing for high-voltage isolation. Consider the 2 A current rating per contact when designing power distribution networks. The straight orientation simplifies assembly processes compared to right-angle alternatives.

Part Context

This component belongs to the Harwin Gecko-SL family, which specializes in compact, high-density connectivity solutions. The series supports various mating options including headers, wire housings, and cable assemblies. The G125-FV variant specifically designates a vertical female receptacle housing, distinguishing it from male plug counterparts or angled variants within the same product line.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
