G125-FV11605F2R

Overview

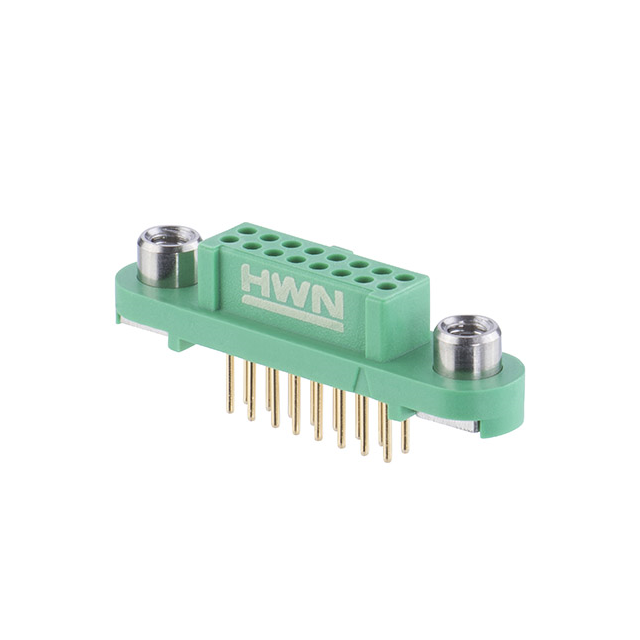

The Harwin G125-FV11605F2R is a Gecko-SL series power-to-board connector featuring 16 positions in a dual-row configuration. It utilizes a 1.25 mm pitch with vertical through-hole solder pin termination. The component includes reverse fix internally threaded jackscrew board mounting for secure attachment. Contact materials are beryllium copper with gold plating, rated for 2 A current and 250 V voltage. Operating temperature ranges from -65°C to +150°C.

Feature Summary

• Reverse fix internally threaded jackscrew board mount
• Gold-plated beryllium copper contacts
• Vertical through-hole solder termination

Applications

• Power distribution modules
• Industrial control systems
• Telecommunications equipment

Procurement Notes

Verify the specific suffix '2R' indicates tape reel packaging when ordering. Confirm that the reverse fix mechanism aligns with the target PCB hole pattern. Ensure the 1.25 mm pitch matches mating connector specifications. Check RoHS compliance documentation for regulatory requirements. Validate the 2 A current rating against thermal management needs.

Selection Notes

Select this part for applications requiring secure screw-lock retention on vertical connectors. The reverse fix design prevents accidental disengagement during vibration. Use with compatible Gecko-SL male headers or wire harnesses. Consider the 1.25 mm pitch density for space-constrained layouts. Verify insulation resistance and material compatibility for harsh environments.

Part Context

This component belongs to the Harwin Gecko-SL family of micro-miniature connectors. The series offers high-density interconnect solutions with reliable locking mechanisms. The G125-FV variant specifically addresses power-to-board connections with vertical orientation. It complements other Gecko-SL components for complete system integration.

Replacement Considerations

No public confirmed substitute part numbers are available.
