Product Detailed Parameters
- Description：CONN RCPT 16POS 0.049 GOLD PCB
- Series：Gecko
- Mfr：Harwin Inc.
- Package：Strip
- Connector Type：Receptacle
- Contact Type：Female Socket
- Style：Board to Board or Cable
- Number of Positions：16
- Number of Positions Loaded：All
- Pitch - Mating：0.049" (1.25mm)
- Number of Rows：2
- Row Spacing - Mating：0.049" (1.25mm)
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Latch Holder
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：8.00µin (0.203µm)
- Insulation Color：Green
- Insulation Height：0.207" (5.25mm)
- Contact Length - Post：0.118" (3.00mm)
- Operating Temperature：-65°C ~ 150°C
- Material Flammability Rating：UL94 V-0
- Contact Finish - Post：Gold
- Mated Stacking Heights：-
- Ingress Protection：-
- Features：Pick and Place, Polarizing Key
- Current Rating (Amps)：2A
- Voltage Rating：-
Download product information
Overview

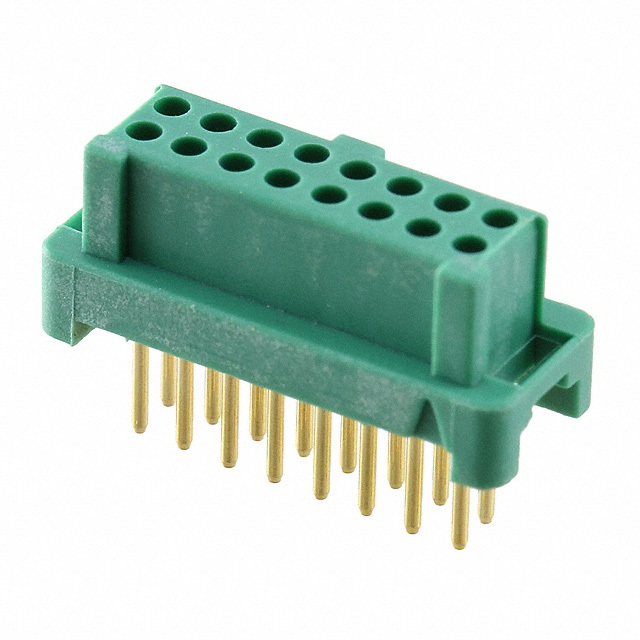

The G125-FV11605L0P is a 16-position, dual-row PCB receptacle from the Harwin Gecko series. It features a 1.25 mm pitch and female socket contacts with gold plating. Designed for through-hole mounting, this connector supports board-to-board or wire-to-board applications. It has a current rating of 2 A and a voltage rating of 250 V. The housing is made of nylon, offering a compact solution for high-density interconnects in electronic assemblies.
Feature Summary
- Integrated polarizing key prevents misalignment during mating
- Compatible with automated pick-and-place assembly processes
- Gold-plated phosphor bronze contacts ensure reliable conductivity
Applications
- Automotive electronics systems
- General purpose industrial equipment
- High-density PCB interconnections
Procurement Notes
Verify the specific suffix codes against official datasheets to confirm contact finish, housing color, and packaging type. Ensure compatibility with mating pins regarding polarization keys and mechanical retention requirements before finalizing procurement specifications.
Selection Notes
Select this component when a low-profile, high-density connection is required for through-hole PCBs. Consider the 1.25 mm pitch constraints and verify that the 2 A current rating meets the circuit load requirements. Confirm that the polarizing key orientation aligns with the mating connector design.
Part Context
This part belongs to the Gecko family, known for its compact form factor and robust mechanical performance. The series provides various configurations for different mounting styles and contact counts, serving as a versatile solution for modern electronic device miniaturization needs.
Replacement Considerations
Direct substitutes within the same series include G125-FV11605F1P. Verify pin count, pitch, and mounting style match before substitution.
FAQ
Does this connector support automated assembly?
Yes, the G125-FV11605L0P is designed to be compatible with pick-and-place assembly equipment.
What is the function of the polarizing key?
The polarizing key ensures correct alignment between the receptacle and the mating plug, preventing incorrect insertion.
