G125-FV12005F3P

Overview

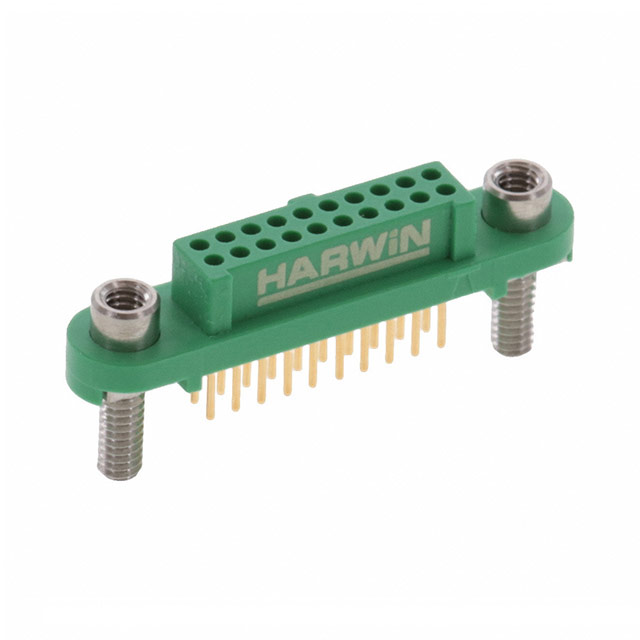

The G125-FV12005F3P is a rectangular connector component belonging to the Gecko-SL series manufactured by Harwin Inc. It functions as a power-to-board receptacle featuring female socket contacts with a 1.25 mm pitch. The unit utilizes a two-row configuration and employs a vertical through-hole solder pin termination style for secure PCB mounting. Designed for robust signal transmission, this specific housing variant incorporates reverse fix tape packaging to facilitate automated assembly processes. The component operates within a temperature range of -65°C to +150°C and meets UL 94 V-0 flammability standards.

Feature Summary

• Vertical through-hole mounting orientation for direct board integration
• Female socket contact type ensuring reliable mating connections
• Reverse fix tape packaging design supporting high-speed automation

Applications

• Power distribution modules requiring compact form factors
• Industrial control systems utilizing surface or through-hole architectures
• Automotive electronic sub-assemblies demanding high thermal stability

Procurement Notes

Verify the exact suffix designation against the manufacturer's current catalog to confirm the reverse fix tape specification, as standard bulk packaging variants exist within the same series. Ensure compatibility with mating header pins regarding current ratings and insulation voltage levels before finalizing procurement orders.

Selection Notes

Select this part when a vertical orientation and automated assembly via reverse fix tape are required. Confirm that the two-row layout fits the available PCB real estate. Validate that the 1.25 mm pitch aligns with the mating connector system to prevent mechanical interference during insertion.

Part Context

This component is part of the broader Gecko-SL family, which emphasizes micro-miniature connectivity solutions. The series provides various configurations including headers, housings, and cable assemblies, all sharing a common 1.25 mm pitch architecture to ensure interchangeability and standardized design practices across different product lines.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Direct replacement requires identical series membership and physical footprint verification.
