Product Detailed Parameters
- Description：CONN RCPT 20POS 0.049 GOLD PCB
- Series：Gecko SL Reverse Fix
- Mfr：Harwin Inc.
- Package：Tape & Reel (TR)
- Connector Type：Receptacle
- Contact Type：Female Socket
- Style：Board to Board or Cable
- Number of Positions：20
- Number of Positions Loaded：All
- Pitch - Mating：0.049" (1.25mm)
- Number of Rows：2
- Row Spacing - Mating：0.049" (1.25mm)
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Screw Lock
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：8.00µin (0.203µm)
- Insulation Color：Green
- Insulation Height：0.207" (5.25mm)
- Contact Length - Post：0.118" (3.00mm)
- Operating Temperature：-65°C ~ 150°C
- Material Flammability Rating：UL94 V-0
- Contact Finish - Post：Gold
- Mated Stacking Heights：7.25mm, 7.33mm
- Ingress Protection：-
- Features：Jackscrews, Pick and Place, Polarizing Key
- Current Rating (Amps)：2A
- Voltage Rating：450V
Download product information
Overview

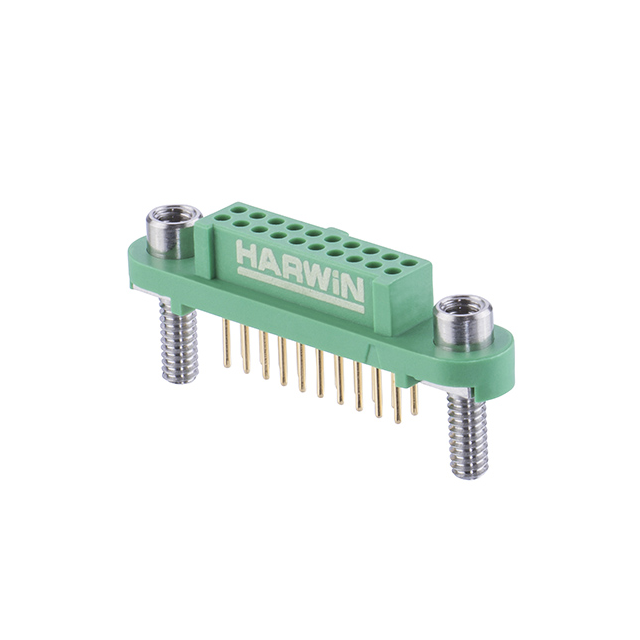

The Harwin G125-FV12005F3R is a 20-position, dual-row female receptacle connector from the Gecko-SL series. It features a 1.25 mm pitch and gold-plated phosphor bronze contacts housed in green polyamide (PA). Designed for through-hole vertical mounting, it supports a current rating of 2 A per contact and operates within a temperature range of -65°C to +150°C. The unit utilizes a jackscrew locking mechanism and meets UL 94 V-0 flammability standards.
Feature Summary
- Four-finger patented copper alloy contact design ensures high reliability under extreme vibration conditions.
- Jackscrew locking mechanism provides secure mating retention for demanding applications.
- Low-profile miniature package offers significant space savings compared to other high-performance connectors.
Applications
- Motor control systems
- DSP controller interfaces
- High-reliability electronic product designs
Procurement Notes
Verify component authenticity by cross-referencing the manufacturer part number with official datasheets. Confirm RoHS compliance status and check for specific ordering suffixes that may alter function or packaging. Ensure the supplier provides valid traceability documentation for this discontinued or limited-stock item.
Selection Notes
Select this component when a compact, high-reliability solution is required for vertical board-to-board connections. The 1.25 mm pitch allows for dense pinout configurations while maintaining a 2 A current capacity. Consider the jackscrew feature if vibration resistance and secure mating are critical operational requirements.
Part Context
This connector belongs to the Harwin Gecko-SL family, engineered for performance in miniature packages. The series is characterized by its ability to operate in extreme environments, including wide temperature ranges and high-g vibration zones, making it suitable for rugged industrial and automotive electronics.
Replacement Considerations
No direct public substitute part numbers are confirmed for this specific model. As the G125-FV12005F3R is a specialized high-reliability component, alternative selection requires matching the 1.25 mm pitch, 20-position dual-row configuration, and jackscrew locking mechanism manually.
FAQ
What is the locking mechanism type for this connector?
The G125-FV12005F3R utilizes a jackscrew locking mechanism to ensure secure mating retention.
What is the maximum operating temperature for this component?
The connector is rated for operation up to +150°C.
