G125-FV12605F1P

$41.14

Description：CONN RCPT 26POS 0.049 GOLD PCB
Series：Gecko SL
Mfr：Harwin Inc.
Package：Bulk

SKU:9a80164adbb2 Category: Headers, Receptacles, Female Sockets Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN RCPT 26POS 0.049 GOLD PCB
Series：Gecko SL
Mfr：Harwin Inc.
Package：Bulk
Connector Type：Receptacle
Contact Type：Female Socket
Style：Board to Board or Cable
Number of Positions：26
Number of Positions Loaded：All
Pitch - Mating：0.049" (1.25mm)
Number of Rows：2
Row Spacing - Mating：0.049" (1.25mm)
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Screw Lock
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：8.00µin (0.203µm)
Insulation Color：Green
Insulation Height：0.207" (5.25mm)
Contact Length - Post：-
Operating Temperature：-65°C ~ 150°C
Material Flammability Rating：UL94 V-0
Contact Finish - Post：Gold
Mated Stacking Heights：-
Ingress Protection：-
Features：Jackscrews, Pick and Place, Polarizing Key
Current Rating (Amps)：2A
Voltage Rating：-

Download product information

G125-FV12605F1P

Overview

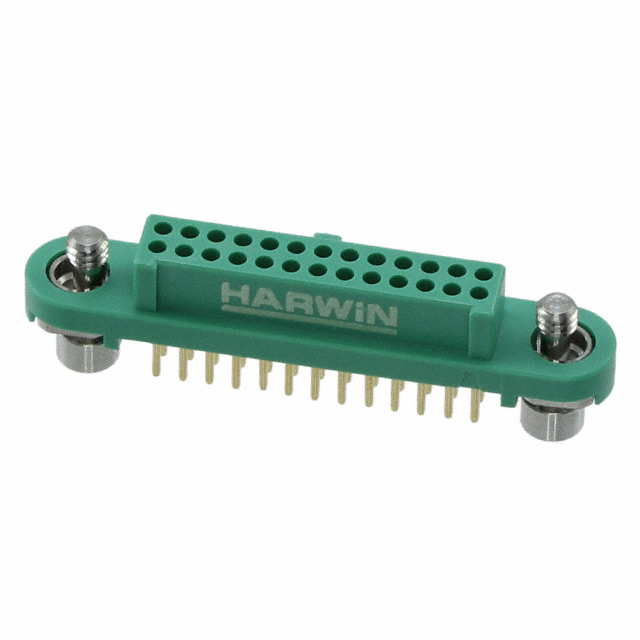

The Harwin G125-FV12605F1P is a Gecko-SL series power-to-board connector designed for through-hole mounting. It features a female socket configuration with 26 positions arranged in a dual-row layout. The component utilizes a 1.25 mm pitch and accepts a 3 mm PC-tail mating interface. Electrical ratings include a current capacity of 2 A and voltage ratings of 250 V or 450 V. Constructed with gold-plated copper alloy contacts and a green nylon housing, it operates within a temperature range of -65 °C to +150 °C.

Feature Summary

Dual-row female socket architecture supporting high-density power distribution
Gold-plated copper alloy contacts ensuring reliable signal integrity
Green nylon insulation housing providing thermal stability

Applications

Industrial control systems requiring robust power connections
Telecommunications infrastructure equipment
Automotive electronic modules
Consumer appliance mainboards

Procurement Notes

Verify the specific suffix codes against official datasheets to confirm exact contact count and tail dimensions. Ensure compatibility with mating headers regarding pitch and row alignment. Cross-reference RoHS and REACH compliance status directly with manufacturer documentation prior to integration into regulated environments.

Selection Notes

Select this component when a through-hole female receptacle is required for board-level power delivery. Confirm that the 1.25 mm pitch aligns with the system's footprint constraints. Validate that the 2 A current rating meets the circuit load requirements. Consider the 3 mm PC-tail specification for proper mechanical engagement with corresponding male pins.

Part Context

This part belongs to the Harwin Gecko-SL family, which specializes in compact power-to-board solutions. The series offers various configurations including surface mount and through-hole options. The G125-FV variant specifically addresses vertical insertion needs with a stable through-hole termination method suitable for automated assembly processes.
