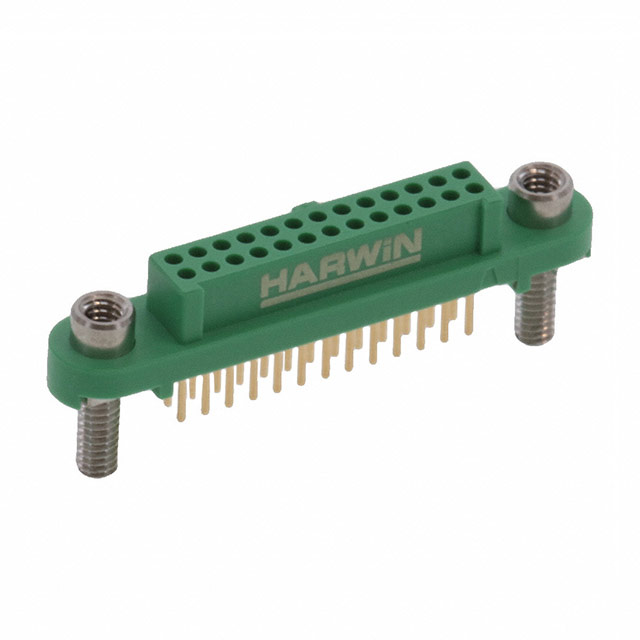

G125-FV12605F3P

$44.51

Description：CONN RCPT 26POS 0.049 GOLD PCB
Series：Gecko SL
Mfr：Harwin Inc.
Package：Strip

SKU:f3910c1d1d14 Category: Headers, Receptacles, Female Sockets Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN RCPT 26POS 0.049 GOLD PCB
Series：Gecko SL
Mfr：Harwin Inc.
Package：Strip
Connector Type：Receptacle
Contact Type：Female Socket
Style：Board to Board or Cable
Number of Positions：26
Number of Positions Loaded：All
Pitch - Mating：0.049" (1.25mm)
Number of Rows：2
Row Spacing - Mating：0.049" (1.25mm)
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Screw Lock
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：8.00µin (0.203µm)
Insulation Color：Green
Insulation Height：0.207" (5.25mm)
Contact Length - Post：0.118" (3.00mm)
Operating Temperature：-65°C ~ 150°C
Material Flammability Rating：UL94 V-0
Contact Finish - Post：Gold
Mated Stacking Heights：7.25mm, 7.33mm
Ingress Protection：-
Features：Jackscrews, Pick and Place, Polarizing Key
Current Rating (Amps)：2A
Voltage Rating：450V

Download product information

G125-FV12605F3P

Overview

The Harwin G125-FV12605F3P is a Gecko-SL series power-to-board connector featuring a female socket configuration with a 3mm PC tail. It offers 26 positions arranged in a dual-row layout with a 1.25mm pitch. The component supports through-hole mounting and utilizes solder pin termination. Rated for 2A current and 250V voltage, it operates within a temperature range of -65°C to +150°C. Contacts are gold-plated copper alloy housed in green nylon.

Feature Summary

Gecko Screw-Lok (G125) series design provides a low-profile interconnect solution suitable for stacking applications.
Integrated 3mm PC tail facilitates secure vertical PCB mounting and cable mating.
Dual-row receptacle structure enables high-density connectivity in restricted spaces.

Applications

Stacking board interconnections
Cable mating assemblies
Power distribution boards

Procurement Notes

Verify the specific ordering suffix against official Harwin documentation to confirm the tape-and-reel packaging variant. Ensure the selected part matches the required 3mm PC tail length and contact count. Cross-reference the RoHS compliance status and REACH SVHC declarations with the latest manufacturer datasheet before finalizing procurement specifications.

Selection Notes

Select this component when a low-profile, dual-row female connector with an integrated PC tail is required. The 1.25mm pitch allows for dense pin arrangements while maintaining robust mechanical stability. Verify that the operating environment stays within the specified -65°C to +150°C thermal limits and that the 2A current rating meets circuit requirements.

Part Context

This part belongs to the Harwin Gecko-SL family, designed for compact electronic systems. It complements male headers and cable assemblies within the same 1.25mm pitch ecosystem. The series emphasizes reliable performance in space-constrained environments requiring secure vertical connections.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided data. Direct replacement requires identical pitch, row configuration, and PC tail dimensions from compatible manufacturers.
