Product Detailed Parameters
- Description：CONN RCPT 26POS 0.049 GOLD PCB
- Series：Gecko SL Reverse Fix
- Mfr：Harwin Inc.
- Package：Tape & Reel (TR)
- Connector Type：Receptacle
- Contact Type：Female Socket
- Style：Board to Board or Cable
- Number of Positions：26
- Number of Positions Loaded：All
- Pitch - Mating：0.049" (1.25mm)
- Number of Rows：2
- Row Spacing - Mating：0.049" (1.25mm)
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Screw Lock
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：8.00µin (0.203µm)
- Insulation Color：Green
- Insulation Height：0.207" (5.25mm)
- Contact Length - Post：0.118" (3.00mm)
- Operating Temperature：-65°C ~ 150°C
- Material Flammability Rating：UL94 V-0
- Contact Finish - Post：Gold
- Mated Stacking Heights：7.25mm, 7.33mm
- Ingress Protection：-
- Features：Jackscrews, Pick and Place, Polarizing Key
- Current Rating (Amps)：2A
- Voltage Rating：450V
Download product information
Overview

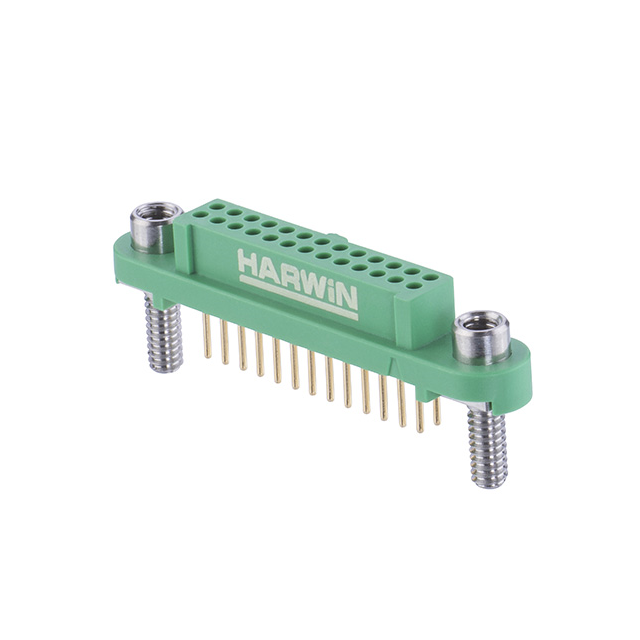

The G125-FV12605F3R is a Gecko-SL series power-to-board connector manufactured by Harwin. It features a female socket configuration with 26 positions arranged in two rows. The component utilizes a 1.25 mm pitch and is designed for vertical through-hole mounting with solder pin termination. Rated for 2 A current and 250 V voltage, it operates within a temperature range of -65 C to +150 C. The housing is constructed from nylon with a green color, while contacts are gold-plated copper alloy.
Feature Summary
- Vertical through-hole mounting design for PCB integration
- Gold-plated copper alloy contacts for reliable conductivity
- Nylon housing material providing structural stability
Applications
- Power distribution in electronic assemblies
- High-reliability interconnect systems
- Industrial equipment connections
Procurement Notes
Verify the specific suffix 'R' against the official datasheet to confirm reverse fix orientation and packaging details. Ensure compatibility with mating male headers within the Gecko-SL family. Confirm RoHS and REACH compliance status via manufacturer documentation before procurement.
Selection Notes
Select this part for applications requiring vertical board mounting with a 1.25 mm pitch. Verify that the 2 A current rating and 250 V voltage limits meet circuit requirements. Ensure the through-hole solder pin termination matches the PCB fabrication capabilities.
Part Context
This component belongs to the Harwin Gecko-SL series, a high-reliability connector system designed for demanding environments. The series offers various configurations including surface mount and through-hole options with consistent 1.25 mm pitch performance across the product line.
Replacement Considerations
G125-FV12605F1P is a similar Gecko-SL female connector with through-hole termination and 26 positions. Verify mechanical fit and electrical ratings before substitution.
