G125-FV12605L0P

Overview

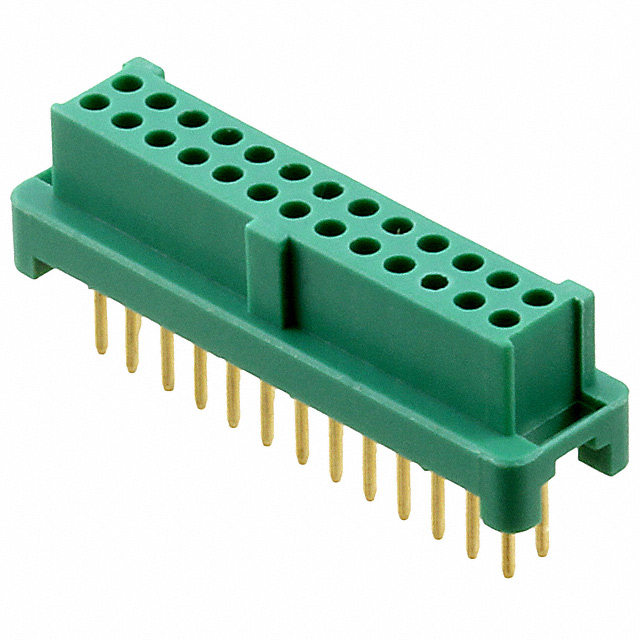

The Harwin G125-FV12605L0P is a Gecko-SL series power-to-board receptacle connector designed for vertical through-hole mounting. It features a 1.25 mm pitch with 26 positions arranged in two rows. The component utilizes gold-plated copper alloy contacts and a green nylon housing. Rated for 2 A current and 250 V voltage, it operates within a temperature range of -65 °C to +150 °C.

Feature Summary

• Vertical through-hole socket configuration for secure board integration
• Gold-plated copper alloy contacts ensure reliable electrical conductivity
• Nylon housing provides structural stability and thermal resistance

Applications

• Automotive electronic systems
• Industrial control boards
• Power distribution modules

Procurement Notes

Verify the specific suffix against official datasheets to confirm contact length and plating specifications. Ensure compatibility with mating pin headers regarding pitch and row alignment. Confirm RoHS compliance status via manufacturer documentation prior to procurement.

Selection Notes

Select this component for applications requiring robust vertical interconnects with high thermal tolerance. Verify that the 26-position layout matches the target circuit design. Ensure the through-hole soldering process accommodates the specified operating temperature limits.

Part Context

This part belongs to the Harwin Gecko-SL family, which focuses on compact power-to-board solutions. The series supports various configurations including cable assemblies and male headers to create complete interconnect systems for demanding environments.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Cross-reference with other 1.25 mm pitch 2x13 female sockets only if mechanical and electrical parameters match exactly.
