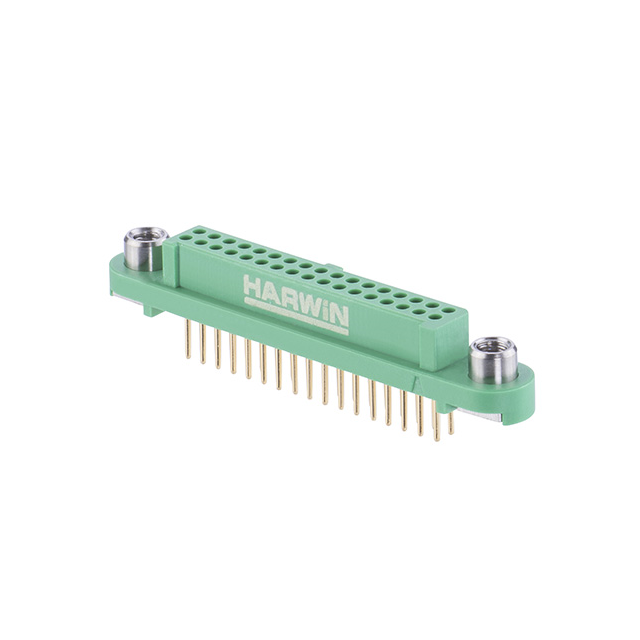

G125-FV13405F2R

Product Detailed Parameters

• Description：CONN RCPT 34POS 0.049 GOLD PCB
• Series：Gecko SL Reverse Fix
• Mfr：Harwin Inc.
• Package：Tape & Reel (TR)
• Connector Type：Receptacle
• Contact Type：Female Socket
• Style：Board to Board or Cable
• Number of Positions：34
• Number of Positions Loaded：All
• Pitch - Mating：0.049" (1.25mm)
• Number of Rows：2
• Row Spacing - Mating：0.049" (1.25mm)
• Mounting Type：Through Hole
• Termination：Solder
• Fastening Type：Screw Lock
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：8.00µin (0.203µm)
• Insulation Color：Green
• Insulation Height：0.207" (5.25mm)
• Contact Length - Post：0.118" (3.00mm)
• Operating Temperature：-65°C ~ 150°C
• Material Flammability Rating：UL94 V-0
• Contact Finish - Post：Gold
• Mated Stacking Heights：7.25mm, 7.33mm
• Ingress Protection：-
• Features：Mating Flange, Pick and Place, Polarizing Key
• Current Rating (Amps)：2A
• Voltage Rating：450V
