G125-FV13405F3R

Overview

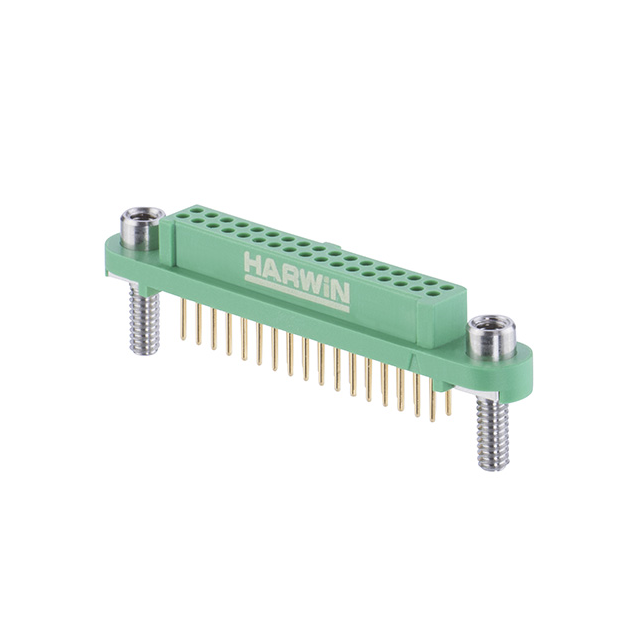

The G125-FV13405F3R is a Gecko-SL series power-to-board connector manufactured by Harwin. It features a 1.25 mm pitch and a 2x17 position configuration, totaling 34 contacts. The component utilizes female socket contacts made from beryllium copper with gold plating. Designed for through-hole mounting, it offers a vertical orientation with reverse fixing capabilities. The connector supports a rated current of 2 A and operates within a temperature range of -65°C to +150°C. The housing is constructed from green nylon material.

Feature Summary

• Vertical through-hole design with reverse fixing mechanism
• Gold-plated beryllium copper female socket contacts
• High-temperature operation capability up to +150°C

Applications

• Power distribution in compact electronic assemblies
• High-reliability interconnects in aerospace systems
• Industrial control board connections

Procurement Notes

Verify the specific suffix 'R' indicates tape and reel packaging when ordering. Confirm that the reverse fix feature aligns with mechanical constraints. Ensure compatibility with mating male headers from the same G125 series. Check RoHS compliance status via official documentation before integration.

Selection Notes

Select this part for applications requiring high-density power connections with vertical board penetration. The 1.25 mm pitch allows for compact layouts compared to larger pitch connectors. Consider the reverse fix requirement for secure mounting in vibration-prone environments. Verify thermal ratings against operational extremes.

Part Context

This component belongs to the Harwin Gecko-SL family, designed for high-reliability applications. The series is characterized by its small 1.25 mm pitch and robust construction. It serves as a critical interface between power sources and circuit boards in demanding sectors such as aerospace and industrial automation.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided data.
