Product Detailed Parameters

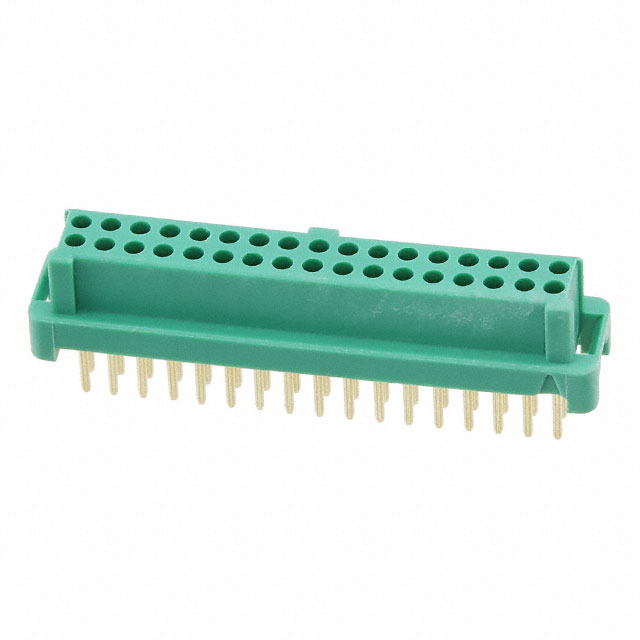

- Description：CONN RCPT 34POS 0.049 GOLD PCB
- Series：Gecko
- Mfr：Harwin Inc.
- Package：Bag
- Connector Type：Receptacle
- Contact Type：Female Socket
- Style：Board to Board or Cable
- Number of Positions：34
- Number of Positions Loaded：All
- Pitch - Mating：0.049" (1.25mm)
- Number of Rows：2
- Row Spacing - Mating：0.049" (1.25mm)
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Latch Holder
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：8.00µin (0.203µm)
- Insulation Color：Green
- Insulation Height：0.207" (5.25mm)
- Contact Length - Post：0.118" (3.00mm)
- Operating Temperature：-65°C ~ 150°C
- Material Flammability Rating：UL94 V-0
- Contact Finish - Post：Gold
- Mated Stacking Heights：-
- Ingress Protection：-
- Features：Pick and Place, Polarizing Key
- Current Rating (Amps)：2A
- Voltage Rating：-
Download product information
Overview
The Harwin G125-FV13405L0P is a Gecko-Latch series power-to-board connector featuring a 1.25 mm pitch and 34 positions arranged in two rows. It utilizes vertical through-hole solder pin termination with a straight mounting style. The component supports a current rating of 2 A and operates within a temperature range of -65 C to +150 C. Contacts are made of beryllium copper with gold plating, housed in a black or green body.
Feature Summary
- Vertical through-hole design for direct board integration
- Gecko-Latch locking mechanism for secure mating
- Gold-plated beryllium copper contacts for reliable conductivity
Applications
- Power distribution in compact electronic assemblies
- Industrial control system interconnects
- Consumer electronics internal power routing
Procurement Notes
Verify the specific suffix L0P against official Harwin documentation to confirm tape-and-reel packaging and contact orientation. Ensure compatibility with mating male headers from the same Gecko-Latch family. Confirm RoHS and REACH compliance status via the manufacturer datasheet before procurement.
Selection Notes
Select this part for applications requiring high-density vertical power connections with a 1.25 mm pitch. Consider the 2 A current rating and thermal limits when designing PCB layouts. Verify that the mating connector matches the female socket configuration and latch type.
Part Context
This component belongs to the Harwin Gecko-Latch series, designed for secure power-to-board connections. It complements male header variants like the G125-MH series, providing a complete interconnect solution for vertical mounting requirements in space-constrained environments.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Direct replacement requires matching the 1.25 mm pitch, 34-position count, vertical orientation, and Gecko-Latch locking mechanism.
