G125-FV15005F3P

$73.91

Description：CONN RCPT 50POS 0.049 GOLD PCB
Series：Gecko SL
Mfr：Harwin Inc.
Package：Strip

SKU:0808d30e0203 Category: Headers, Receptacles, Female Sockets Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN RCPT 50POS 0.049 GOLD PCB
Series：Gecko SL
Mfr：Harwin Inc.
Package：Strip
Connector Type：Receptacle
Contact Type：Female Socket
Style：Board to Board or Cable
Number of Positions：50
Number of Positions Loaded：All
Pitch - Mating：0.049" (1.25mm)
Number of Rows：2
Row Spacing - Mating：0.049" (1.25mm)
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Screw Lock
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：8.00µin (0.203µm)
Insulation Color：Green
Insulation Height：0.207" (5.25mm)
Contact Length - Post：0.118" (3.00mm)
Operating Temperature：-65°C ~ 150°C
Material Flammability Rating：UL94 V-0
Contact Finish - Post：Gold
Mated Stacking Heights：7.25mm, 7.33mm
Ingress Protection：-
Features：Jackscrews, Pick and Place, Polarizing Key
Current Rating (Amps)：2A
Voltage Rating：450V

Download product information

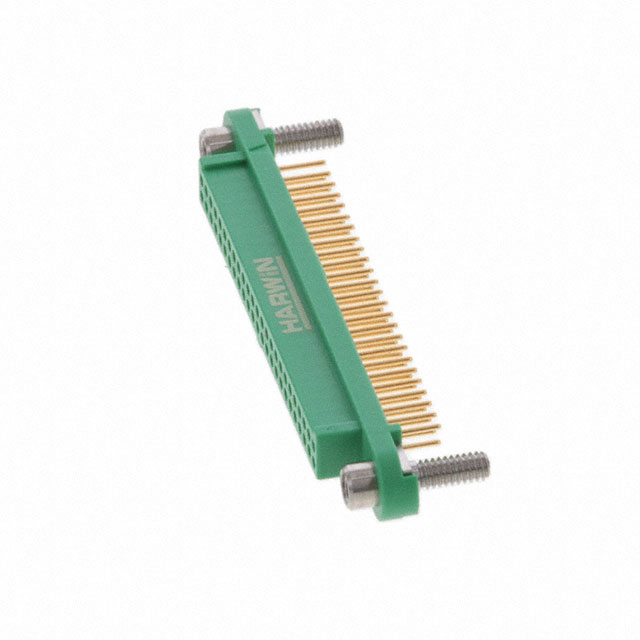

G125-FV15005F3P

Overview

The G125-FV15005F3P is a Power to the Board socket connector from Harwin's Gecko-SL series. It features a 1.25 mm pitch and 50 positions in a 2-row configuration. Rated for 2 A current, it utilizes gold-plated beryllium copper contacts within a green nylon housing. Designed for vertical SMD mounting with reverse fix, it operates between -65°C and +150°C.

Feature Summary

Vertical surface-mount design with reverse fixing mechanism
Gold-plated beryllium copper contacts for reliable connection
High-temperature nylon housing rated up to +150°C

Applications

Power distribution on printed circuit boards
Industrial control systems requiring high reliability
Automotive electronics applications

Procurement Notes

Verify the specific suffix F3P against official datasheets to confirm the reverse fix orientation and tape packaging format. Ensure compatibility with mating pins regarding the 1.25 mm pitch and 2 A current rating. Confirm RoHS compliance status through manufacturer documentation before integration.

Selection Notes

Select this component when a vertical power header with reverse mechanical fixation is required. The 50-position capacity suits high-density power routing. Verify that the PCB footprint matches the SMD solder pin termination style and that the operating temperature range meets system thermal requirements.

Part Context

This part belongs to the Gecko-SL family of micro-miniature connectors. It complements other G125 series components like cable assemblies and housings. The series is designed for harsh environments, offering robust performance in automotive and industrial sectors where space and reliability are critical constraints.
